The SystemSolver class provides methods for building and solving large linear systems. More...

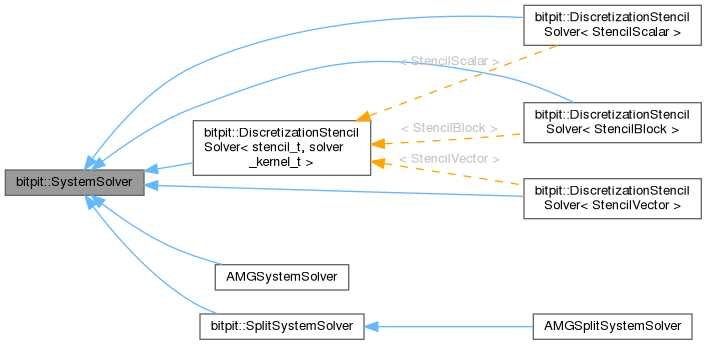

Inheritance diagram for bitpit::SystemSolver:

[legend]

Collaboration diagram for bitpit::SystemSolver:

[legend]

Public Types
typedef SystemMatrixAssembler	Assembler

enum	FileFormat { FILE_BINARY , FILE_ASCII }

Public Member Functions
	SystemSolver (bool debug=false)

	SystemSolver (bool flatten, bool transpose, bool debug)

	SystemSolver (bool transpose, bool debug)

	SystemSolver (const std::string &prefix, bool debug=false)

	SystemSolver (const std::string &prefix, bool flatten, bool transpose, bool debug)

	SystemSolver (const std::string &prefix, bool transpose, bool debug)

virtual	~SystemSolver ()

void	assembly (const Assembler &assembler)

void	assembly (const Assembler &assembler, const SystemMatrixOrdering &reordering)

void	assembly (const SparseMatrix &matrix)

void	assembly (const SparseMatrix &matrix, const SystemMatrixOrdering &reordering)

virtual void	clear ()

virtual void	clearWorkspace ()

void	dumpSystem (const std::string &header, const std::string &directory, const std::string &prefix="") const

void	enableForceConsistency (bool enable)

virtual void	exportMatrix (const std::string &filePath, FileFormat exportFormat=FILE_BINARY) const

virtual void	exportRHS (const std::string &filePath, FileFormat exportFormat=FILE_BINARY) const

virtual void	exportSolution (const std::string &filePath, FileFormat exportFormat=FILE_BINARY) const

virtual int	getBlockSize () const

long	getColCount () const

long	getColElementCount () const

long	getColGlobalCount () const

long	getColGlobalElementCount () const

KSPOptions &	getKSPOptions ()

const KSPOptions &	getKSPOptions () const

const KSPStatus &	getKSPStatus () const

double *	getRHSRawPtr ()

const double *	getRHSRawPtr () const

const double *	getRHSRawReadPtr () const

long	getRowCount () const

long	getRowElementCount () const

long	getRowGlobalCount () const

long	getRowGlobalElementCount () const

double *	getSolutionRawPtr ()

const double *	getSolutionRawPtr () const

const double *	getSolutionRawReadPtr () const

bool	getTranspose () const

virtual void	importMatrix (const std::string &filePath)

virtual void	importRHS (const std::string &filePath)

virtual void	importSolution (const std::string &filePath)

bool	isAssembled () const

bool	isForceConsistencyEnabled () const

bool	isPartitioned () const

void	restoreRHSRawPtr (double *raw_rhs)

void	restoreRHSRawReadPtr (const double *raw_rhs) const

void	restoreSolutionRawPtr (double *raw_solution)

void	restoreSolutionRawReadPtr (const double *raw_solution) const

void	restoreSystem (MPI_Comm communicator, bool redistribute, const std::string &directory, const std::string &prefix="")

virtual void	setNullSpace ()

void	setTranspose (bool transpose)

void	solve ()

void	solve (const std::vector< double > &rhs, std::vector< double > *solution)

void	unsetNullSpace ()

void	update (const Assembler &assembler)

void	update (const SparseMatrix &elements)

void	update (long nRows, const long *rows, const Assembler &assembler)

void	update (long nRows, const long *rows, const SparseMatrix &elements)

Protected Types
enum	VectorSide { VECTOR_SIDE_RIGHT , VECTOR_SIDE_LEFT }

Protected Member Functions
template<typename DerivedSystemSolver>
void	assembly (const typename DerivedSystemSolver::Assembler &assembler, const SystemMatrixOrdering &reordering)

void	clearReordering ()

virtual void	createKSP ()

void	createMatrix (int rowBlockSize, int colBlockSize, int nNestRows, int nNestCols, Mat subMatrices, Mat matrix) const

void	createMatrix (int rowBlockSize, int colBlockSize, Mat *matrix) const

void	createVector (int blockSize, int nestSize, Vec subVectors, Vec vector) const

void	createVector (int blockSize, Vec *vector) const

virtual void	destroyKSP ()

virtual void	destroyKSPOptions ()

virtual void	destroyKSPStatus ()

void	destroyMatrix (Mat *matrix) const

void	destroyVector (Vec *vector) const

virtual void	dumpInfo (std::ostream &stream) const

void	dumpMatrix (Mat matrix, const std::string &directory, const std::string &name) const

void	dumpVector (Vec vector, const std::string &directory, const std::string &name) const

void	dumpVector (Vec vector, VectorSide side, const std::string &directory, const std::string &name) const

void	exportMatrix (Mat matrix, const std::string &filePath, FileFormat fileFormat) const

void	exportVector (Vec vector, const std::string &filePath, FileFormat fileFormat) const

void	exportVector (Vec vector, std::vector< double > *data) const

virtual void	fillKSPStatus ()

virtual void	fillKSPStatus (KSP ksp, KSPStatus *status) const

void	fillMatrix (Mat matrix, const std::string &filePath) const

void	fillVector (Vec vector, const std::string &filePath) const

void	fillVector (Vec vector, const std::vector< double > &data) const

virtual void	finalizeKSP ()

const MPI_Comm &	getCommunicator () const

std::string	getDataFilePath (const std::string &directory, const std::string &name) const

virtual int	getDumpVersion () const

std::string	getFilePath (const std::string &directory, const std::string &name) const

std::string	getInfoFilePath (const std::string &directory, const std::string &name) const

virtual void	initializeKSPOptions ()

virtual void	initializeKSPStatus ()

void	matrixAssembly (const Assembler &assembler)

virtual void	matrixDestroy ()

virtual void	matrixDump (std::ostream &systemStream, const std::string &directory, const std::string &prefix) const

virtual void	matrixFill (const std::string &filePath)

virtual void	matrixRestore (std::istream &systemStream, const std::string &directory, const std::string &prefix, bool redistribute)

void	matrixUpdate (long nRows, const long *rows, const Assembler &assembler)

virtual void	postKrylovSetupActions ()

virtual void	postKSPSolveActions ()

virtual void	postPreconditionerSetupActions ()

virtual void	preKrylovSetupActions ()

virtual void	preKSPSolveActions ()

virtual void	prepareKSP ()

virtual void	prePreconditionerSetupActions ()

void	reorderVector (Vec vector, IS permutations, bool invert) const

virtual void	resetKSPOptions (KSPOptions *options) const

virtual void	resetKSPStatus ()

virtual void	resetKSPStatus (KSPStatus *status) const

virtual void	restoreInfo (std::istream &stream)

void	restoreMatrix (const std::string &directory, const std::string &name, bool redistribute, Mat *matrix) const

void	restoreVector (const std::string &directory, const std::string &name, bool redistribute, Vec *vector) const

void	restoreVector (const std::string &directory, const std::string &name, Mat matrix, VectorSide side, Vec *vector) const

void	restoreVector (const std::string &directory, const std::string &name, std::size_t localSize, std::size_t globalSize, Vec *vector) const

void	setReordering (long nRows, long nCols, const SystemMatrixOrdering &reordering)

virtual void	setupKrylov ()

virtual void	setupKrylov (KSP ksp, const KSPOptions &options) const

virtual void	setupPreconditioner ()

virtual void	setupPreconditioner (PC pc, const KSPOptions &options) const

virtual void	solveKSP ()

template<typename DerivedSystemSolver>
void	update (long nRows, const long *rows, const typename DerivedSystemSolver::Assembler &assembler)

virtual void	vectorsCreate ()

virtual void	vectorsDestroy ()

virtual void	vectorsDump (std::ostream &systemStream, const std::string &directory, const std::string &prefix) const

virtual void	vectorsFill (const std::string &rhsFilePath, const std::string &solutionFilePath)

virtual void	vectorsFill (const std::vector< double > &rhs, const std::vector< double > &solution)

virtual void	vectorsReorder (bool invert)

virtual void	vectorsRestore (std::istream &systemStream, const std::string &directory, const std::string &prefix)

Protected Attributes
Mat	m_A

IS	m_colReordering

bool	m_convergenceMonitorEnabled

bool	m_flatten

KSP	m_KSP

bool	m_KSPDirty

KSPOptions	m_KSPOptions

KSPStatus	m_KSPStatus

Vec	m_rhs

IS	m_rowReordering

Vec	m_solution

bool	m_transpose

Detailed Description

The SystemSolver class provides methods for building and solving large linear systems.

Rather than working with individual elements in the system matrix, it is possible to employ blocks of elements. The size of the blocks can be defined during assembly. When a size different that one is provided, the matrix will store elements by fixed-sized dense nb × nb blocks, where nb is the size of the blocks. Blocking may be advantageous when solving PDE-based simulations that leads to matrices with a naturally blocked structure (with a block size equal to the number of degrees of freedom per cell).

When blocking is used, row and column indexes will count the number of blocks in the row/column direction, not the number of rows/columns of the matrix.

Examples: LA_example_00001.cpp, and RBF_example_00001.cpp.

Definition at line 259 of file system_solvers_large.hpp.

Member Typedef Documentation

◆ Assembler

typedef SystemMatrixAssembler bitpit::SystemSolver::Assembler

Definition at line 262 of file system_solvers_large.hpp.

Member Enumeration Documentation

◆ FileFormat

enum bitpit::SystemSolver::FileFormat

Definition at line 264 of file system_solvers_large.hpp.

◆ VectorSide

enum bitpit::SystemSolver::VectorSide

protected

Definition at line 353 of file system_solvers_large.hpp.

Constructor & Destructor Documentation

◆ SystemSolver() [1/6]

bitpit::SystemSolver::SystemSolver ( bool debug = false )

Constructor.

Parameters

debug if set to true, debug information will be printed

Examples: LA_example_00001.cpp.

Definition at line 770 of file system_solvers_large.cpp.

◆ SystemSolver() [2/6]

bitpit::SystemSolver::SystemSolver	(	bool	transpose,
		bool	debug )

Constuctor

Parameters

transpose	if set to true, transposed system will be solved
debug	if set to true, debug information will be printed

Definition at line 781 of file system_solvers_large.cpp.

◆ SystemSolver() [3/6]

bitpit::SystemSolver::SystemSolver	(	bool	flatten,
		bool	transpose,
		bool	debug )

Constuctor

Parameters

flatten	if set to true, block size will not be taken into account when allocating the internal storage of the system matrix. Even when the internal storage is flat, block size information are available and can be used by the solver to speed up the solution of the system. However, since the internal storage doesn't take blocks into account, some low level operations (e.g., matrix-matrix multiplications) cannot use block information. Some algorithms for the solution of the system (e.g., multigrid) requires a flat storage.
transpose	if set to true, transposed system will be solved
debug	if set to true, debug information will be printed

Definition at line 799 of file system_solvers_large.cpp.

◆ SystemSolver() [4/6]

bitpit::SystemSolver::SystemSolver	(	const std::string &	prefix,
		bool	debug = false )

Constructor.

Parameters

prefix	is the prefix string to prepend to all option requests
debug	if set to true, debug information will be printed

Definition at line 810 of file system_solvers_large.cpp.

◆ SystemSolver() [5/6]

bitpit::SystemSolver::SystemSolver	(	const std::string &	prefix,
		bool	transpose,
		bool	debug )

Constructor.

Parameters

prefix	is the prefix string to prepend to all option requests
debug	if set to true, debug information will be printed

Definition at line 821 of file system_solvers_large.cpp.

◆ SystemSolver() [6/6]

bitpit::SystemSolver::SystemSolver	(	const std::string &	prefix,
		bool	flatten,
		bool	transpose,
		bool	debug )

Constuctor

Parameters

prefix	is the prefix string to prepend to all option requests
flatten	if set to true, block size will not be taken into account when allocating the internal storage of the system matrix. Even when the internal storage is flat, block size information are available and can be used by the solver to speed up the solution of the system. However, since the internal storage doesn't take blocks into account, some low level operations (e.g., matrix-matrix multiplications) cannot use block information. Some algorithms for the solution of the system (e.g., multigrid) requires a flat storage.
transpose	if set to true, transposed system will be solved
debug	if set to true, debug information will be printed

Definition at line 839 of file system_solvers_large.cpp.

◆ ~SystemSolver()

bitpit::SystemSolver::~SystemSolver ( )

virtual

Destructor.

Definition at line 863 of file system_solvers_large.cpp.

Member Function Documentation

◆ assembly() [1/5]

void bitpit::SystemSolver::assembly ( const Assembler & assembler )

Assembly the system.

After assembying th system solver, its options will be reset.

Parameters

assembler is the matrix assembler

Definition at line 949 of file system_solvers_large.cpp.

◆ assembly() [2/5]

void bitpit::SystemSolver::assembly	(	const Assembler &	assembler,
		const SystemMatrixOrdering &	reordering )

Assembly the system.

After assembying th system solver, its options will be reset.

Parameters

assembler	is the matrix assembler
reordering	is the reordering that will be applied when assembling the system

Definition at line 962 of file system_solvers_large.cpp.

◆ assembly() [3/5]

void bitpit::SystemSolver::assembly ( const SparseMatrix & matrix )

Assembly the system.

After assembying th system solver, its options will be reset.

Parameters

matrix is the matrix

Examples: RBF_example_00001.cpp.

Definition at line 917 of file system_solvers_large.cpp.

◆ assembly() [4/5]

void bitpit::SystemSolver::assembly	(	const SparseMatrix &	matrix,
		const SystemMatrixOrdering &	reordering )

Assembly the system.

After assembying th system solver, its options will be reset.

Parameters

matrix	is the matrix
reordering	is the reordering that will be applied when assembling the system

Definition at line 930 of file system_solvers_large.cpp.

◆ assembly() [5/5]

template<typename DerivedSystemSolver>

void bitpit::SystemSolver::assembly	(	const typename DerivedSystemSolver::Assembler &	assembler,
		const SystemMatrixOrdering &	reordering )

protected

Assembly the system.

After assembying th system solver, its options will be reset.

Parameters

assembler	is the matrix assembler
reordering	is the reordering that will be applied when assemblying the system

Definition at line 95 of file system_solvers_large.tpp.

◆ clear()

void bitpit::SystemSolver::clear ( )

virtual

Clear the system

Reimplemented in bitpit::DiscretizationStencilSolver< stencil_t, solver_kernel_t >, bitpit::DiscretizationStencilSolver< StencilBlock >, bitpit::DiscretizationStencilSolver< StencilBlock >, bitpit::DiscretizationStencilSolver< StencilScalar >, bitpit::DiscretizationStencilSolver< StencilScalar >, bitpit::DiscretizationStencilSolver< StencilVector >, and bitpit::DiscretizationStencilSolver< StencilVector >.

Definition at line 875 of file system_solvers_large.cpp.

◆ clearReordering()

void bitpit::SystemSolver::clearReordering ( )

protected

Clear the reordering that will be applied when assembling the matrix.

The function will clear any reordering previously set. With no reordering defined, the matrix will be assembled using its natural ordering.

Definition at line 3134 of file system_solvers_large.cpp.

◆ clearWorkspace()

void bitpit::SystemSolver::clearWorkspace ( )

virtual

Clear and release the memory of all data structures needed for the solution of the system.

These data structures will be re-created the next time the system will be solved.

Definition at line 899 of file system_solvers_large.cpp.

◆ createKSP()

void bitpit::SystemSolver::createKSP ( )

protectedvirtual

Create the KSP.

Definition at line 3217 of file system_solvers_large.cpp.

◆ createMatrix() [1/2]

void bitpit::SystemSolver::createMatrix	(	int	rowBlockSize,
		int	colBlockSize,
		int	nNestRows,
		int	nNestCols,
		Mat *	subMatrices,
		Mat *	matrix ) const

protected

Create a nest matrix.

Parameters

rowBlockSize	is the row block size of the matrix
colBlockSize	is the column block size of the matrix
nNestRows	is the number of rows in the nest, i.e. the number of submatrices along the rows of the nest
nNestCols	is the number of columns in the nest, i.e. the number of submatrices along the columns of the nest
subMatrices	are the submatrices stored in row-major order, empty submatrices can be passed using nullptr
vector	on output will contain the newly created matrix

Definition at line 2309 of file system_solvers_large.cpp.

◆ createMatrix() [2/2]

void bitpit::SystemSolver::createMatrix	(	int	rowBlockSize,
		int	colBlockSize,
		Mat *	matrix ) const

protected

Create a matrix.

Parameters

rowBlockSize	is the row block size of the matrix
colBlockSize	is the column block size of the matrix
matrix	on output will contain the newly created matrix

Definition at line 2254 of file system_solvers_large.cpp.

◆ createVector() [1/2]

void bitpit::SystemSolver::createVector	(	int	blockSize,
		int	nestSize,
		Vec *	subVectors,
		Vec *	vector ) const

protected

Create a nest vector.

Parameters

blockSize	is the block size of the vector
nestSize	is the number of subvectors that will be contained in the nest
subVectors	are the subvectors, empty subvectors can be passed using nullptr
vector	on output will contain the newly created vector

Definition at line 2614 of file system_solvers_large.cpp.

◆ createVector() [2/2]

void bitpit::SystemSolver::createVector	(	int	blockSize,
		Vec *	vector ) const

protected

Create a vector.

Parameters

blockSize	is the block size of the vector
vector	on output will contain the newly created vector

Definition at line 2581 of file system_solvers_large.cpp.

◆ destroyKSP()

void bitpit::SystemSolver::destroyKSP ( )

protectedvirtual

Destroy the KSP.

Definition at line 3235 of file system_solvers_large.cpp.

◆ destroyKSPOptions()

void bitpit::SystemSolver::destroyKSPOptions ( )

protectedvirtual

Destroy the options associated with the KSP.

Reimplemented in bitpit::SplitSystemSolver.

Definition at line 3431 of file system_solvers_large.cpp.

◆ destroyKSPStatus()

void bitpit::SystemSolver::destroyKSPStatus ( )

protectedvirtual

Destroy the status of the KSP.

Reimplemented in bitpit::SplitSystemSolver.

Definition at line 3504 of file system_solvers_large.cpp.

◆ destroyMatrix()

void bitpit::SystemSolver::destroyMatrix ( Mat * matrix ) const

protected

Destroy the specified matrix.

Parameters

matrix is the matrix that will be destroyed

Definition at line 2567 of file system_solvers_large.cpp.

◆ destroyVector()

void bitpit::SystemSolver::destroyVector ( Vec * vector ) const

protected

Destroy the specified vector.

Parameters

vector is the vector that will be destroyed

Definition at line 2998 of file system_solvers_large.cpp.

◆ dumpInfo()

void bitpit::SystemSolver::dumpInfo ( std::ostream & systemStream ) const

protectedvirtual

Dump system information.

Parameters

systemStream is the stream in which system information is written

Reimplemented in bitpit::SplitSystemSolver.

Definition at line 2218 of file system_solvers_large.cpp.

◆ dumpMatrix()

void bitpit::SystemSolver::dumpMatrix	(	Mat	matrix,
		const std::string &	directory,
		const std::string &	name ) const

protected

Dump the specified matrix.

In addition to the file that contains the contant of the matrix, some other files will be created:

a file with the information needed for re-creating the matrix (called "<NAME>.info");

a file with the information about the partitioning (called "<NAME>.partitioning"), this file is created only if the system is partitioned and bitpit MPI support is enabled.

Parameters

matrix	is the matrix that will be dumped
directory	is the directory in which the matrix data file will be written
name	is the name of the matrix that will be dumped

Definition at line 2378 of file system_solvers_large.cpp.

◆ dumpSystem()

void bitpit::SystemSolver::dumpSystem	(	const std::string &	header,
		const std::string &	directory,
		const std::string &	prefix = "" ) const

Dump the system to files.

Only the contents of the system will be dumped, this include the matrix, the RHS vector, the solution vector, and the information needed to properly restore the aforementioned data structures (e.g., the block size or the transpose flag).

Parameters

header	is the header that will be written in the system information archive
directory	is the directory where the files will be saved
prefix	is the prefix that will be added to the files

Definition at line 2120 of file system_solvers_large.cpp.

◆ dumpVector()

void bitpit::SystemSolver::dumpVector	(	Vec	vector,
		const std::string &	directory,
		const std::string &	name ) const

protected

Dump the specified vector.

In addition to the file that contains the contant of the vector, some other files will be created:

a file with the information needed for re-creating the vector (called "<NAME>.info");

a file with the information about the partitioning (called "<NAME>.partitioning"), this file is created only if the system is partitioned and bitpit MPI support is enabled.

Parameters

vector	is the vector that will be dumped
directory	is the directory in which the vector data file will be written
name	is the name of the vector that will be dumped

Definition at line 2699 of file system_solvers_large.cpp.

◆ enableForceConsistency()

void bitpit::SystemSolver::enableForceConsistency ( bool enable )

Enable or disable forcing right hand side consistency.

Parameters

enable if set to true, right hand side consistency will be forced before solving the system

Definition at line 3583 of file system_solvers_large.cpp.

◆ exportMatrix() [1/2]

void bitpit::SystemSolver::exportMatrix	(	const std::string &	filePath,
		FileFormat	fileFormat = FILE_BINARY ) const

virtual

Export the matrix to the specified file.

Parameters

filePath	is the path of the file
fileFormat	is the file format that will be used for exporting the matrix, note that the ASCII format may not be able to handle large matrices

Reimplemented in bitpit::SplitSystemSolver.

Definition at line 1968 of file system_solvers_large.cpp.

◆ exportMatrix() [2/2]

void bitpit::SystemSolver::exportMatrix	(	Mat	matrix,
		const std::string &	filePath,
		FileFormat	fileFormat ) const

protected

Export the given matrix to the specified file.

Parameters

matrix	is the matrix that will be filled
filePath	is the path of the file that will contain matrix data
fileFormat	is the file format that will be used for exporting the matrix, note that the ASCII format may not be able to handle large matrices

Definition at line 2519 of file system_solvers_large.cpp.

◆ exportRHS()

void bitpit::SystemSolver::exportRHS	(	const std::string &	filePath,
		FileFormat	fileFormat = FILE_BINARY ) const

virtual

Export the RHS vector to the specified file.

Parameters

filePath	is the path of the file
fileFormat	is the file format that will be used for exporting the RHS vector, note that the ASCII format may not be able to handle large vectors

Definition at line 2010 of file system_solvers_large.cpp.

◆ exportSolution()

void bitpit::SystemSolver::exportSolution	(	const std::string &	filePath,
		FileFormat	fileFormat = FILE_BINARY ) const

virtual

Export the solution vector to the specified file.

Parameters

filePath	is the path of the file
fileFormat	is the file format that will be used for exporting the solution vector, note that the ASCII format may not be able to handle large vectors

Definition at line 2063 of file system_solvers_large.cpp.

◆ exportVector() [1/2]

void bitpit::SystemSolver::exportVector	(	Vec	vector,
		const std::string &	filePath,
		FileFormat	fileFormat ) const

protected

Export the specified vector to the file given file.

Parameters

vector	is the vector that will be exported
filePath	is the path of the file
fileFormat	is the file format that will be used for exporting the vector, note that the ASCII format may not be able to handle large vectors

Definition at line 2931 of file system_solvers_large.cpp.

◆ exportVector() [2/2]

void bitpit::SystemSolver::exportVector	(	Vec	vector,
		std::vector< double > *	data ) const

protected

Export the specified vector into the given container.

Parameters

vector	is the vector that will be exported
data	on output it will contain the data of the vector of the linear system

Definition at line 2980 of file system_solvers_large.cpp.

◆ fillKSPStatus() [1/2]

void bitpit::SystemSolver::fillKSPStatus ( )

protectedvirtual

Fill the status of the KSP.

Reimplemented in bitpit::SplitSystemSolver.

Definition at line 3463 of file system_solvers_large.cpp.

◆ fillKSPStatus() [2/2]

void bitpit::SystemSolver::fillKSPStatus	(	KSP	ksp,
		KSPStatus *	status ) const

protectedvirtual

Fill the status of the specified KSP.

Parameters

ksp	is the KSP the status will be fetched from
status	on output will contain the status of the KSP

Reimplemented in bitpit::SplitSystemSolver.

Definition at line 3474 of file system_solvers_large.cpp.

◆ fillMatrix()

void bitpit::SystemSolver::fillMatrix	(	Mat	matrix,
		const std::string &	filePath ) const

protected

Fill the given matrix reading its contents from the specified file.

The input file should contain a compatible matrix stored in PETSc binary format. If the data file cannot be read an exception is thrown.

Parameters

matrix	is the matrix that will be filled
filePath	is the path of the file that contains matrix data

Definition at line 2336 of file system_solvers_large.cpp.

◆ fillVector() [1/2]

void bitpit::SystemSolver::fillVector	(	Vec	vector,
		const std::string &	filePath ) const

protected

Fill the given vector reading its contents from the specified file.

The input file should contain a compatible vector stored in PETSc binary format. If the data file cannot be read an exception is thrown.

Parameters

vector	is the vector that will be filled
filePath	is the path of the file that contains vector data

Definition at line 2638 of file system_solvers_large.cpp.

◆ fillVector() [2/2]

void bitpit::SystemSolver::fillVector	(	Vec	vector,
		const std::vector< double > &	data ) const

protected

Fill the specified vector with the given data.

Parameters

vector	is the vector that will be filled
data	is the data that will be copied into the vector

Definition at line 2667 of file system_solvers_large.cpp.

◆ finalizeKSP()

void bitpit::SystemSolver::finalizeKSP ( )

protectedvirtual

Finalize the KSP after the solution of the system.

Definition at line 3209 of file system_solvers_large.cpp.

◆ getBlockSize()

int bitpit::SystemSolver::getBlockSize ( ) const

virtual

Get the block size of the system.

Returns: The block size of the system.

Reimplemented in bitpit::SplitSystemSolver.

Definition at line 1022 of file system_solvers_large.cpp.

◆ getColCount()

long bitpit::SystemSolver::getColCount ( ) const

Get the number of columns of the system.

If the matrix is a block matrix (i.e., the block size is greater than one), this function will return the number of block columns, where a block column is defined as a group of block-size matrix columns.

Returns: The number of columns of the system.

Definition at line 1065 of file system_solvers_large.cpp.

◆ getColElementCount()

long bitpit::SystemSolver::getColElementCount ( ) const

Get the number of elements in the columns of the system.

This function will return the effective number of columns of the system matrix. This value is the same as the local size used in creating the x vector for the matrix-vector product y = Ax.

Returns: The number of elements in the columns of the system.

Definition at line 1108 of file system_solvers_large.cpp.

◆ getColGlobalCount()

long bitpit::SystemSolver::getColGlobalCount ( ) const

Get number of global (block) columns.

If the matrix is a block matrix (i.e., the block size is greater than one), this function will return the global number of block columns, where a block column is defined as a group of block-size matrix columns.

Returns: The number of global (block) columns.

Definition at line 1152 of file system_solvers_large.cpp.

◆ getColGlobalElementCount()

long bitpit::SystemSolver::getColGlobalElementCount ( ) const

Get the number of global elements in the columns of the system.

This function will return the effective global number of columns of the system matrix.

Returns: The number of global elements in the columns of the system.

Definition at line 1193 of file system_solvers_large.cpp.

◆ getCommunicator()

const MPI_Comm & bitpit::SystemSolver::getCommunicator ( ) const

protected

Gets the MPI communicator associated to the system.

Returns: The MPI communicator associated to the system.

Definition at line 3515 of file system_solvers_large.cpp.

◆ getDataFilePath()

std::string bitpit::SystemSolver::getDataFilePath	(	const std::string &	directory,
		const std::string &	name ) const

protected

Get the path of the specified data file.

Parameters

directory	is the directory that contains the file
name	is the name, without extension, of the file

Returns: The path of the data file.

Definition at line 3025 of file system_solvers_large.cpp.

◆ getDumpVersion()

int bitpit::SystemSolver::getDumpVersion ( ) const

protectedvirtual

Get the version associated with the binary dumps.

Returns: The version associated with the binary dumps.

Definition at line 1322 of file system_solvers_large.cpp.

◆ getFilePath()

std::string bitpit::SystemSolver::getFilePath	(	const std::string &	directory,
		const std::string &	name ) const

protected

Get the path of the specified file.

Parameters

directory	is the directory that contains the file
name	is the name of the file

Returns: The path of the file.

Definition at line 3037 of file system_solvers_large.cpp.

◆ getInfoFilePath()

std::string bitpit::SystemSolver::getInfoFilePath	(	const std::string &	directory,
		const std::string &	name ) const

protected

Get the path of the specified info file.

Parameters

directory	is the directory that contains the file
name	is the name, without extension, of the file

Returns: The path of the info file.

Definition at line 3013 of file system_solvers_large.cpp.

◆ getKSPOptions() [1/2]

KSPOptions & bitpit::SystemSolver::getKSPOptions ( )

Get a reference to the options associated with the Krylov solver.

The options associated with the Krylov solver can only be accessed after assembling the system.

Returns: A reference to the options associated with the Krylov solver.

Definition at line 3385 of file system_solvers_large.cpp.

◆ getKSPOptions() [2/2]

const KSPOptions & bitpit::SystemSolver::getKSPOptions ( ) const

Get a constant reference to the options associated with the Krylov solver.

The options associated with the Krylov solver can only be accessed after assembling the system.

Returns: A constant reference to the options associated with the Krylov solver.

Definition at line 3401 of file system_solvers_large.cpp.

◆ getKSPStatus()

const KSPStatus & bitpit::SystemSolver::getKSPStatus ( ) const

Get a constant reference to the status of the Krylov solver.

The status of the Krylov solver can only be accessed after assembling the system.

Returns: A constant reference to the status of the Krylov solver.

Definition at line 3443 of file system_solvers_large.cpp.

◆ getRHSRawPtr() [1/2]

double * bitpit::SystemSolver::getRHSRawPtr ( )

Get a raw pointer to the solution vector.

Returns: A raw pointer to the solution vector.

Examples: RBF_example_00001.cpp.

Definition at line 1850 of file system_solvers_large.cpp.

◆ getRHSRawPtr() [2/2]

const double * bitpit::SystemSolver::getRHSRawPtr ( ) const

Get a constant raw pointer to the solution vector.

Returns: A constant raw pointer to the solution vector.

Definition at line 1863 of file system_solvers_large.cpp.

◆ getRHSRawReadPtr()

const double * bitpit::SystemSolver::getRHSRawReadPtr ( ) const

Get a constant raw pointer to the solution vector.

Returns: A constant raw pointer to the solution vector.

Definition at line 1873 of file system_solvers_large.cpp.

◆ getRowCount()

long bitpit::SystemSolver::getRowCount ( ) const

Get the number of rows of the system.

If the matrix is a block matrix (i.e., the block size is greater than one), this function will return the number of block rows, where a block row is defined as a group of block-size matrix rows.

Returns: The number of rows of the system.

Definition at line 1043 of file system_solvers_large.cpp.

◆ getRowElementCount()

long bitpit::SystemSolver::getRowElementCount ( ) const

Get the number of elements in the rows of the system.

This function will return the effective number of rows of the system matrix. This value is the same as the local size used in creating the y vector for the matrix-vector product y = Ax.

Returns: The number of elements in the rows of the system.

Definition at line 1087 of file system_solvers_large.cpp.

◆ getRowGlobalCount()

long bitpit::SystemSolver::getRowGlobalCount ( ) const

Get number of global (block) rows.

If the matrix is a block matrix (i.e., the block size is greater than one), this function will return the global number of block rows, where a block row is defined as a group of block-size matrix rows.

Returns: The number of global rows

Definition at line 1130 of file system_solvers_large.cpp.

◆ getRowGlobalElementCount()

long bitpit::SystemSolver::getRowGlobalElementCount ( ) const

Get the number of global elements in the rows of the system.

This function will return the effective global number of rows of the system matrix.

Returns: The number of global elements in the rows of the system.

Definition at line 1173 of file system_solvers_large.cpp.

◆ getSolutionRawPtr() [1/2]

double * bitpit::SystemSolver::getSolutionRawPtr ( )

Get a raw pointer to the solution vector.

Returns: A raw pointer to the solution vector.

Examples: RBF_example_00001.cpp.

Definition at line 1908 of file system_solvers_large.cpp.

◆ getSolutionRawPtr() [2/2]

const double * bitpit::SystemSolver::getSolutionRawPtr ( ) const

Get a constant raw pointer to the solution vector.

Returns: A constant raw pointer to the solution vector.

Definition at line 1921 of file system_solvers_large.cpp.

◆ getSolutionRawReadPtr()

const double * bitpit::SystemSolver::getSolutionRawReadPtr ( ) const

Get a constant raw pointer to the solution vector.

Returns: A constant raw pointer to the solution vector.

Examples: RBF_example_00001.cpp.

Definition at line 1931 of file system_solvers_large.cpp.

◆ getTranspose()

bool bitpit::SystemSolver::getTranspose ( ) const

Get the transpose flag.

Returns: Returns true if the transposed system will be solved, false otherwise.

Definition at line 165 of file system_solvers_large.cpp.

◆ importMatrix()

void bitpit::SystemSolver::importMatrix ( const std::string & filePath )

virtual

Import the matrix reading its contents form the specified file.

The input file should contain a compatible matrix stored in PETSc binary format. It's up to the caller of this routine to make sure the loaded matrix is compatible with the system. If the matrix file cannot be read an exception is thrown.

Parameters

filePath is the path of the file

Definition at line 1982 of file system_solvers_large.cpp.

◆ importRHS()

void bitpit::SystemSolver::importRHS ( const std::string & filePath )

virtual

Import the RHS vector reading its contents from the specified file.

The input file should contain a compatible vector stored in PETSc binary format. If the size of the vector stored in the file is not compatible with the matrix, an exception is thrown. An exception is also raised if the file cannot be read.

It is possible to fill the RHS vector only after the system has been assembled.

Parameters

filePath is the path of the file that contains RHS vector data

Definition at line 2026 of file system_solvers_large.cpp.

◆ importSolution()

void bitpit::SystemSolver::importSolution ( const std::string & filePath )

virtual

Import the solution vector reading its contents from the specified file.

The input file should contain a compatible vector stored in PETSc binary format. If the size of the vector stored in the file is not compatible with the matrix, an exception is thrown. An exception is also raised if the file cannot be read.

It is possible to fill the solution vector only after the system has been assembled.

Parameters

filePath is the path of the file that contains solution vector data

Definition at line 2079 of file system_solvers_large.cpp.

◆ initializeKSPOptions()

void bitpit::SystemSolver::initializeKSPOptions ( )

protectedvirtual

Initialize the options associated with the KSP.

Reimplemented in bitpit::SplitSystemSolver.

Definition at line 3413 of file system_solvers_large.cpp.

◆ initializeKSPStatus()

void bitpit::SystemSolver::initializeKSPStatus ( )

protectedvirtual

Initialize the status of the KSP.

Reimplemented in bitpit::SplitSystemSolver.

Definition at line 3455 of file system_solvers_large.cpp.

◆ isAssembled()

bool bitpit::SystemSolver::isAssembled ( ) const

Check if the system is assembled.

Returns: Returns true if the system is assembled, false otherwise.

Definition at line 1221 of file system_solvers_large.cpp.

◆ isForceConsistencyEnabled()

bool bitpit::SystemSolver::isForceConsistencyEnabled ( ) const

Check if right hand side consistency is forced before solving the system.

In order to force right hand side consistency, null space components are removed from the right hand side before solving the system.

Definition at line 3572 of file system_solvers_large.cpp.

◆ isPartitioned()

bool bitpit::SystemSolver::isPartitioned ( ) const

Checks if the matrix is partitioned.

Returns: Returns true if the patch is partitioned, false otherwise.

Examples: LA_example_00001.cpp.

Definition at line 1210 of file system_solvers_large.cpp.

◆ matrixAssembly()

void bitpit::SystemSolver::matrixAssembly ( const Assembler & assembler )

protected

Assemble the matrix.

Parameters

assembler is the matrix assembler

Definition at line 1334 of file system_solvers_large.cpp.

◆ matrixDestroy()

void bitpit::SystemSolver::matrixDestroy ( )

protectedvirtual

Destroy the matrix.

Reimplemented in bitpit::SplitSystemSolver.

Definition at line 1731 of file system_solvers_large.cpp.

◆ matrixDump()

void bitpit::SystemSolver::matrixDump	(	std::ostream &	systemStream,
		const std::string &	directory,
		const std::string &	prefix ) const

protectedvirtual

Dump the matrix.

Parameters

systemStream	is the stream in which system information is written
directory	is the directory in which the matrix data file will be written
prefix	is the prefix added to the name of the file containing matrix data

Reimplemented in bitpit::SplitSystemSolver.

Definition at line 1691 of file system_solvers_large.cpp.

◆ matrixFill()

void bitpit::SystemSolver::matrixFill ( const std::string & filePath )

protectedvirtual

Fill the matrix reading its contents form the specified file.

The input file should contain a compatible vector stored in PETSc binary format. It's up to the caller of this routine to make sure the loaded vector is compatible with the matrix. If the matrix file cannot be read an exception is thrown.

Parameters

filePath is the path of the file

Reimplemented in bitpit::SplitSystemSolver.

Definition at line 1479 of file system_solvers_large.cpp.

◆ matrixRestore()

void bitpit::SystemSolver::matrixRestore	(	std::istream &	systemStream,
		const std::string &	directory,
		const std::string &	prefix,
		bool	redistribute )

protectedvirtual

Restore the matrix.

Parameters

systemStream	is the stream from which system information is read
directory	is the directory from which the matrix data file will be read
prefix	is the prefix that will be was added to the files during
redistribute	if set to true, the matrix will be redistributed among the available processes, allowing to restore the matrix with a different number of processes than those used to dump it

Reimplemented in bitpit::SplitSystemSolver.

Definition at line 1712 of file system_solvers_large.cpp.

◆ matrixUpdate()

void bitpit::SystemSolver::matrixUpdate	(	long	nRows,
		const long *	rows,
		const Assembler &	assembler )

protected

Update the specified rows of the matrix.

The contents of the specified rows will be replaced by the data provided by the given assembler. If the matrix has not been assembled yet, both the pattern and the values of the matrix will be updated. After the matrix has been assembled only the values will be updated.

The block size of the assembler should be equal to the block size of the matrix.

Parameters

nRows	is the number of rows that will be updated
rows	are the local indices of the rows that will be updated, if a null pointer is passed, the rows that will be updated are the rows from 0 to (nRows - 1).
assembler	is the matrix assembler for the rows that will be updated

Definition at line 1506 of file system_solvers_large.cpp.

◆ postKrylovSetupActions()

void bitpit::SystemSolver::postKrylovSetupActions ( )

protectedvirtual

Perform actions after Krylov subspace method setup.

Definition at line 3374 of file system_solvers_large.cpp.

◆ postKSPSolveActions()

void bitpit::SystemSolver::postKSPSolveActions ( )

protectedvirtual

Post-solve actions.

Reimplemented in bitpit::SplitSystemSolver.

Definition at line 1305 of file system_solvers_large.cpp.

◆ postPreconditionerSetupActions()

void bitpit::SystemSolver::postPreconditionerSetupActions ( )

protectedvirtual

Perform actions after preconditioner setup.

Definition at line 3317 of file system_solvers_large.cpp.

◆ preKrylovSetupActions()

void bitpit::SystemSolver::preKrylovSetupActions ( )

protectedvirtual

Perform actions before Krylov subspace method setup.

Reimplemented in bitpit::SplitSystemSolver.

Definition at line 3355 of file system_solvers_large.cpp.

◆ preKSPSolveActions()

void bitpit::SystemSolver::preKSPSolveActions ( )

protectedvirtual

Pre-solve actions.

Definition at line 1288 of file system_solvers_large.cpp.

◆ prepareKSP()

void bitpit::SystemSolver::prepareKSP ( )

protectedvirtual

Prepare the KSP before the solution of the system.

Definition at line 3148 of file system_solvers_large.cpp.

◆ prePreconditionerSetupActions()

void bitpit::SystemSolver::prePreconditionerSetupActions ( )

protectedvirtual

Perform actions before preconditioner setup.

Definition at line 3309 of file system_solvers_large.cpp.

◆ reorderVector()

void bitpit::SystemSolver::reorderVector	(	Vec	vector,
		IS	permutations,
		bool	invert ) const

protected

Reorder the specified vector.

Parameters

invert is a flag for inverting the ordering

Definition at line 2907 of file system_solvers_large.cpp.

◆ resetKSPOptions()

void bitpit::SystemSolver::resetKSPOptions ( KSPOptions * options ) const

protectedvirtual

Reset the specified KSP options.

Parameters

options are the options that will be reset

Reimplemented in bitpit::SplitSystemSolver.

Definition at line 3423 of file system_solvers_large.cpp.

◆ resetKSPStatus() [1/2]

void bitpit::SystemSolver::resetKSPStatus ( )

protectedvirtual

Reset the status of the KSP.

Reimplemented in bitpit::SplitSystemSolver.

Definition at line 3484 of file system_solvers_large.cpp.

◆ resetKSPStatus() [2/2]

void bitpit::SystemSolver::resetKSPStatus ( KSPStatus * status ) const

protectedvirtual

Reset the status of the specified KSP.

Parameters

status on output will contain the status of the KSP

Reimplemented in bitpit::SplitSystemSolver.

Definition at line 3494 of file system_solvers_large.cpp.

◆ restoreInfo()

void bitpit::SystemSolver::restoreInfo ( std::istream & systemStream )

protectedvirtual

Restore system information.

Parameters

systemStream is the stream from which system information is read

Reimplemented in bitpit::SplitSystemSolver.

Definition at line 2233 of file system_solvers_large.cpp.

◆ restoreMatrix()

void bitpit::SystemSolver::restoreMatrix	(	const std::string &	directory,
		const std::string &	name,
		bool	redistribute,
		Mat *	matrix ) const

protected

Restore the specified matrix.

Parameters

	directory	is the directory from which the matrix data file will be read
	name	is the name of the matrix that will be dumped
	redistribute	if set to true, the matrix will be redistributed among the available processes, allowing to restore the matrix with a different number of processes than those used to dump it
[out]	matrix	on output will contain the restored matrix

Definition at line 2453 of file system_solvers_large.cpp.

◆ restoreRHSRawPtr()

void bitpit::SystemSolver::restoreRHSRawPtr ( double * raw_rhs )

Restores the solution vector after getRHSRawPtr() has been called.

Parameters

raw_rhs is the location of pointer to array obtained from getRHSRawPtr()

Examples: RBF_example_00001.cpp.

Definition at line 1887 of file system_solvers_large.cpp.

◆ restoreRHSRawReadPtr()

void bitpit::SystemSolver::restoreRHSRawReadPtr ( const double * raw_rhs ) const

Restores the solution vector after getRHSRawReadPtr() has been called.

Parameters

raw_rhs is the location of pointer to array obtained from getRHSRawReadPtr()

Definition at line 1898 of file system_solvers_large.cpp.

◆ restoreSolutionRawPtr()

void bitpit::SystemSolver::restoreSolutionRawPtr ( double * raw_solution )

Restores the solution vector after getSolutionRawPtr() has been called.

Parameters

raw_solution is the location of pointer to array obtained from getSolutionRawPtr()

Examples: RBF_example_00001.cpp.

Definition at line 1945 of file system_solvers_large.cpp.

◆ restoreSolutionRawReadPtr()

void bitpit::SystemSolver::restoreSolutionRawReadPtr ( const double * raw_solution ) const

Restores the solution vector after getSolutionRawReadPtr() has been called.

Parameters

raw_solution is the location of pointer to array obtained from getSolutionRawReadPtr()

Definition at line 1956 of file system_solvers_large.cpp.

◆ restoreSystem()

void bitpit::SystemSolver::restoreSystem	(	MPI_Comm	communicator,
		bool	redistribute,
		const std::string &	directory,
		const std::string &	prefix = "" )

Restore the system from files.

Only the contents of the system will be restored, this include the matrix, the RHS vector, the solution vector, and the information needed to properly create the aforementioned data structures (e.g., the block size or the transpose flag).

Matrix file is mandatory, whereas solution and RHS files are not. If no solution or RHS files are found they will be re-created from scratch (but they will not be initialized).

Parameters

communicator	is the MPI communicator
redistribute	if set to true, the system will be redistributed among the available processes, allowing to restore the system with a different number of processes than those used to dump it
directory	is the directory where the files will be read from
prefix	is the prefix that will be was added to the files during

Definition at line 2168 of file system_solvers_large.cpp.

◆ restoreVector() [1/3]

void bitpit::SystemSolver::restoreVector	(	const std::string &	directory,
		const std::string &	name,
		bool	redistribute,
		Vec *	vector ) const

protected

Restore the specified vector.

Parameters

	directory	is the directory from which the vector data file will be read
	name	is the name of the vector that will be dumped
	redistribute	if set to true, the vector will be redistributed among the available processes, allowing to restore the vector with a different number of processes than those used to dump it
[out]	vector	on output will contain the restored vector

Definition at line 2816 of file system_solvers_large.cpp.

◆ restoreVector() [2/3]

void bitpit::SystemSolver::restoreVector	(	const std::string &	directory,
		const std::string &	name,
		Mat	matrix,
		VectorSide	side,
		Vec *	vector ) const

protected

Restore the specified vector.

Parameters

	directory	is the directory from which the vector data file will be read
	name	is the name of the vector that will be dumped
	matrix	is the matrix the vectors should be compatible with
	side	specifies whether the vector can be multiplied by the matrix, or whether the matrix-vector product can be stored in it
[out]	vector	on output will contain the restored vector

Definition at line 2763 of file system_solvers_large.cpp.

◆ restoreVector() [3/3]

void bitpit::SystemSolver::restoreVector	(	const std::string &	directory,
		const std::string &	name,
		std::size_t	localSize,
		std::size_t	globalSize,
		Vec *	vector ) const

protected

Restore the specified vector.

Parameters

	directory	is the directory from which the vector data file will be read
	name	is the name of the vector that will be dumped
	localSize	is the local size of the restored vector
	globalSize	is the global size of the restored vector
[out]	vector	on output will contain the restored vector

Definition at line 2856 of file system_solvers_large.cpp.

◆ setNullSpace()

void bitpit::SystemSolver::setNullSpace ( )

virtual

Attaches a null space to the system matrix.

Definition at line 3047 of file system_solvers_large.cpp.

◆ setReordering()

void bitpit::SystemSolver::setReordering	(	long	nRows,
		long	nCols,
		const SystemMatrixOrdering &	reordering )

protected

Set the reordering that will be applied when assembling the matrix.

Reordering will be applied when the system is assembled and its sole purpose is to speed up the resolution of the system (e.g., reorder can be used to reduce the fill-in of the LU factorization).

Reordering is only applied internally, all public functions expects row and column indices to be in natural matrix order (i.e., not reordered).

If the system is partitioned, each process can reorder only it's local part of the matrix.

Parameters

nRows	is the number of rows of the system matrix
nCols	is the number of columns of the system matrix
reordering	is the reordering that will be applied

Definition at line 3084 of file system_solvers_large.cpp.

◆ setTranspose()

void bitpit::SystemSolver::setTranspose ( bool transpose )

Set the transpose flag.

If the system is already assembled and the transpose flag needs to be changed, both the solution vector and the RHS one will be destroyed and re-created.

If the transpose flag needs to be changed, the workspaces associated wit the system will be cleared.

Parameters

transpose if set to true, transposed system will be solved

Definition at line 181 of file system_solvers_large.cpp.

◆ setupKrylov() [1/2]

void bitpit::SystemSolver::setupKrylov ( )

protectedvirtual

Set up the Krylov subspace method used to solve the system.

Reimplemented in bitpit::SplitSystemSolver.

Definition at line 3325 of file system_solvers_large.cpp.

◆ setupKrylov() [2/2]

void bitpit::SystemSolver::setupKrylov	(	KSP	ksp,
		const KSPOptions &	options ) const

protectedvirtual

Set up the Krylov subspace method using the given options.

This function is in charge of only setting the properties of the Krylov subspace method that will be used to solve the system. There is a dedicated function to set up the preconditioner.

Parameters

ksp	is the KSP whose Krylov subspace method will be setup
options	are the options that will be used to set up the KSP

Reimplemented in bitpit::SplitSystemSolver.

Definition at line 3340 of file system_solvers_large.cpp.

◆ setupPreconditioner() [1/2]

void bitpit::SystemSolver::setupPreconditioner ( )

protectedvirtual

Set up the preconditioner.

Reimplemented in bitpit::SplitSystemSolver.

Examples: LA_example_00001.cpp.

Definition at line 3245 of file system_solvers_large.cpp.

◆ setupPreconditioner() [2/2]

void bitpit::SystemSolver::setupPreconditioner	(	PC	pc,
		const KSPOptions &	options ) const

protectedvirtual

Set up the specified preconditioner using the given options.

Parameters

pc	is the preconditioner to set up
options	are the options that will be used to set up the preconditioner

Reimplemented in AMGSplitSystemSolver, AMGSystemSolver, and bitpit::SplitSystemSolver.

Definition at line 3258 of file system_solvers_large.cpp.

◆ solve() [1/2]

void bitpit::SystemSolver::solve ( )

Solve the system

Examples: RBF_example_00001.cpp.

Definition at line 1229 of file system_solvers_large.cpp.

◆ solve() [2/2]

void bitpit::SystemSolver::solve	(	const std::vector< double > &	rhs,
		std::vector< double > *	solution )

Solve the system

Parameters

rhs	is the right-hand-side of the system
solution	in input should contain the initial solution, on output it contains the solution of the linear system

Definition at line 1253 of file system_solvers_large.cpp.

◆ solveKSP()

void bitpit::SystemSolver::solveKSP ( )

protectedvirtual

Solve KSP.

Definition at line 1268 of file system_solvers_large.cpp.

◆ unsetNullSpace()

void bitpit::SystemSolver::unsetNullSpace ( )

Removes the null space from the system matrix.

Definition at line 3062 of file system_solvers_large.cpp.

◆ update() [1/4]

void bitpit::SystemSolver::update ( const Assembler & assembler )

Update all the rows of the system.

Only the values of the system matrix can be updated, once the system is assembled its pattern cannot be modified.

Parameters

assembler is the matrix assembler for the rows that will be updated

Definition at line 997 of file system_solvers_large.cpp.

◆ update() [2/4]

void bitpit::SystemSolver::update	(	long	nRows,
		const long *	rows,
		const Assembler &	assembler )

Update the system.

Only the values of the system matrix can be updated, once the system is assembled its pattern cannot be modified.

Parameters

nRows	is the number of rows that will be updated
rows	are the indices of the rows that will be updated
assembler	is the matrix assembler for the rows that will be updated

Definition at line 1012 of file system_solvers_large.cpp.

◆ update() [3/4]

void bitpit::SystemSolver::update	(	long	nRows,
		const long *	rows,
		const SparseMatrix &	elements )

Update the system.

Only the values of the system matrix can be updated, once the system is assembled its pattern cannot be modified.

Parameters

nRows	is the number of rows that will be updated
rows	are the indices of the rows that will be updated
elements	are the elements that will be used to update the rows

Definition at line 977 of file system_solvers_large.cpp.

◆ update() [4/4]

template<typename DerivedSystemSolver>

void bitpit::SystemSolver::update	(	long	nRows,
		const long *	rows,
		const typename DerivedSystemSolver::Assembler &	assembler )

protected

Update the system.

Only the values of the system matrix can be updated, once the system is assembled its pattern cannot be modified.

Parameters

nRows	is the number of rows that will be updated
rows	are the indices of the rows that will be updated
assembler	is the matrix assembler for the rows that will be updated

Definition at line 139 of file system_solvers_large.tpp.

◆ vectorsCreate()

void bitpit::SystemSolver::vectorsCreate ( )

protectedvirtual

Create RHS and solution vectors.

Vectors will be created, but they will not be initialized.

Reimplemented in bitpit::SplitSystemSolver.

Definition at line 1741 of file system_solvers_large.cpp.

◆ vectorsDestroy()

void bitpit::SystemSolver::vectorsDestroy ( )

protectedvirtual

Destroy RHS and solution vectors.

Reimplemented in bitpit::SplitSystemSolver.

Definition at line 1839 of file system_solvers_large.cpp.

◆ vectorsDump()

void bitpit::SystemSolver::vectorsDump	(	std::ostream &	systemStream,
		const std::string &	directory,
		const std::string &	prefix ) const

protectedvirtual

Dump RHS and solution vectors.

Parameters

systemStream	is the stream from which system information is read
directory	is the directory in which the vectors data file will be written
prefix	is the prefix added to the names of the files containing vector data

Definition at line 1811 of file system_solvers_large.cpp.

◆ vectorsFill() [1/2]

void bitpit::SystemSolver::vectorsFill	(	const std::string &	rhsFilePath,
		const std::string &	solutionFilePath )

protectedvirtual

Fill RHS and solution vectors reading their contents from the specified file.

Parameters

rhsFilePath	is the file path containing the content of the RHS vector, if the path is empty the function will leave the RHS vector unaltered
solutionFilePath	is the file path containing the content of the solution vector, if the path is empty the function will leave the solution vector unaltered

Definition at line 1777 of file system_solvers_large.cpp.

◆ vectorsFill() [2/2]

void bitpit::SystemSolver::vectorsFill	(	const std::vector< double > &	rhs,
		const std::vector< double > &	solution )

protectedvirtual

Fill RHS and solution vectors using the given data.

Parameters

rhs	contains the that that will be copied into the RHS vector, if the vector is empty no data will be copied and function will leave the RHS vector unaltered
solution	contains the that that will be copied into the solution vector, if the vector is empty no data will be copied and function will leave the RHS vector unaltered

Definition at line 1758 of file system_solvers_large.cpp.

◆ vectorsReorder()

void bitpit::SystemSolver::vectorsReorder ( bool invert )

protectedvirtual

Reorder RHS and solution vectors to match the order of the system matrix.

Parameters

invert is a flag for inverting the ordering

Reimplemented in bitpit::SplitSystemSolver.

Definition at line 1793 of file system_solvers_large.cpp.

◆ vectorsRestore()

void bitpit::SystemSolver::vectorsRestore	(	std::istream &	systemStream,
		const std::string &	directory,
		const std::string &	prefix )

protectedvirtual

Restore RHS and solution vectors.

Parameters

systemStream	is the stream that contains system information
directory	is the directory from which the vector data file will be read
prefix	is the prefix added to the name of the file containing vectors data

Reimplemented in bitpit::SplitSystemSolver.

Definition at line 1827 of file system_solvers_large.cpp.

Member Data Documentation

◆ m_A

Mat bitpit::SystemSolver::m_A

protected

Definition at line 361 of file system_solvers_large.hpp.

◆ m_colReordering

IS bitpit::SystemSolver::m_colReordering

protected

Definition at line 366 of file system_solvers_large.hpp.

◆ m_convergenceMonitorEnabled

bool bitpit::SystemSolver::m_convergenceMonitorEnabled

protected

Definition at line 368 of file system_solvers_large.hpp.

◆ m_flatten

bool bitpit::SystemSolver::m_flatten

protected

Definition at line 358 of file system_solvers_large.hpp.

◆ m_KSP

KSP bitpit::SystemSolver::m_KSP

protected

Definition at line 370 of file system_solvers_large.hpp.

◆ m_KSPDirty

bool bitpit::SystemSolver::m_KSPDirty

protected

Definition at line 371 of file system_solvers_large.hpp.

◆ m_KSPOptions

KSPOptions bitpit::SystemSolver::m_KSPOptions

protected

Definition at line 372 of file system_solvers_large.hpp.

◆ m_KSPStatus

KSPStatus bitpit::SystemSolver::m_KSPStatus

protected

Definition at line 373 of file system_solvers_large.hpp.

◆ m_rhs

Vec bitpit::SystemSolver::m_rhs

protected

Definition at line 362 of file system_solvers_large.hpp.

◆ m_rowReordering

IS bitpit::SystemSolver::m_rowReordering

protected

Definition at line 365 of file system_solvers_large.hpp.

◆ m_solution

Vec bitpit::SystemSolver::m_solution

protected

Definition at line 363 of file system_solvers_large.hpp.

◆ m_transpose

bool bitpit::SystemSolver::m_transpose

protected

Definition at line 359 of file system_solvers_large.hpp.

The documentation for this class was generated from the following files:

Our website uses cookies

Public Types

Public Member Functions

Protected Types

Protected Member Functions

Protected Attributes

Detailed Description

Member Typedef Documentation

◆ Assembler

Member Enumeration Documentation

◆ FileFormat

◆ VectorSide

Constructor & Destructor Documentation

◆ SystemSolver() [1/6]

◆ SystemSolver() [2/6]

◆ SystemSolver() [3/6]

◆ SystemSolver() [4/6]

◆ SystemSolver() [5/6]

◆ SystemSolver() [6/6]

◆ ~SystemSolver()

Member Function Documentation

◆ assembly() [1/5]

◆ assembly() [2/5]

◆ assembly() [3/5]

◆ assembly() [4/5]

◆ assembly() [5/5]

◆ clear()

◆ clearReordering()

◆ clearWorkspace()

◆ createKSP()

◆ createMatrix() [1/2]

◆ createMatrix() [2/2]

◆ createVector() [1/2]

◆ createVector() [2/2]

◆ destroyKSP()

◆ destroyKSPOptions()

◆ destroyKSPStatus()

◆ destroyMatrix()

◆ destroyVector()

◆ dumpInfo()

◆ dumpMatrix()

◆ dumpSystem()

◆ dumpVector()

◆ enableForceConsistency()

◆ exportMatrix() [1/2]

◆ exportMatrix() [2/2]

◆ exportRHS()

◆ exportSolution()

◆ exportVector() [1/2]

◆ exportVector() [2/2]

◆ fillKSPStatus() [1/2]

◆ fillKSPStatus() [2/2]

◆ fillMatrix()

◆ fillVector() [1/2]

◆ fillVector() [2/2]

◆ finalizeKSP()

◆ getBlockSize()

◆ getColCount()

◆ getColElementCount()

◆ getColGlobalCount()

◆ getColGlobalElementCount()

◆ getCommunicator()

◆ getDataFilePath()

◆ getDumpVersion()

◆ getFilePath()

◆ getInfoFilePath()

◆ getKSPOptions() [1/2]

◆ getKSPOptions() [2/2]

◆ getKSPStatus()

◆ getRHSRawPtr() [1/2]

◆ getRHSRawPtr() [2/2]

◆ getRHSRawReadPtr()

◆ getRowCount()

◆ getRowElementCount()

◆ getRowGlobalCount()

◆ getRowGlobalElementCount()

◆ getSolutionRawPtr() [1/2]

◆ getSolutionRawPtr() [2/2]

◆ getSolutionRawReadPtr()

◆ getTranspose()
