bitpit::SystemMatrixOrdering Class Reference

The SystemMatrixOrdering class provides an interface for defining classes that allows to reorder the system matrix. More...

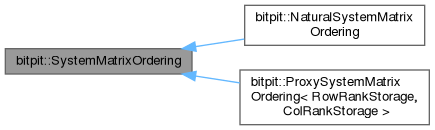

Inheritance diagram for bitpit::SystemMatrixOrdering:

Public Member Functions
virtual long	getColPermutationRank (long col) const =0
virtual long	getRowPermutationRank (long row) const =0

Detailed Description

The SystemMatrixOrdering class provides an interface for defining classes that allows to reorder the system matrix.

If the system is partitioned, each process can reorder only it's local part of the matix.

Definition at line 69 of file system_solvers_large.hpp.

Member Function Documentation

getColPermutationRank()

virtual long bitpit::SystemMatrixOrdering::getColPermutationRank ( long col ) const

pure virtual

Get the rank of the specified local column.

The permutation rank defines the position, in the final assembled matrix, of the specified local column (i.e., the position of the specified local column after applying the reordering).

Parameters

col	is the local column

Returns

The rank of the specified local column.

Implemented in bitpit::NaturalSystemMatrixOrdering, and bitpit::ProxySystemMatrixOrdering< RowRankStorage, ColRankStorage >.

getRowPermutationRank()

virtual long bitpit::SystemMatrixOrdering::getRowPermutationRank ( long row ) const

pure virtual

Get the rank of the specified local row.

The permutation rank defines the position, in the final assembled matrix, of the specified local row (i.e., the position of the specified local row after applying the reordering).

Parameters

row	is the local row

Returns

The rank of the specified local row.

Implemented in bitpit::NaturalSystemMatrixOrdering, and bitpit::ProxySystemMatrixOrdering< RowRankStorage, ColRankStorage >.

---

The documentation for this class was generated from the following file:

• src/LA/system_solvers_large.hpp
