bitpit::DiscretizationStencilSolver< stencil_t, solver_kernel_t > Class Template Reference

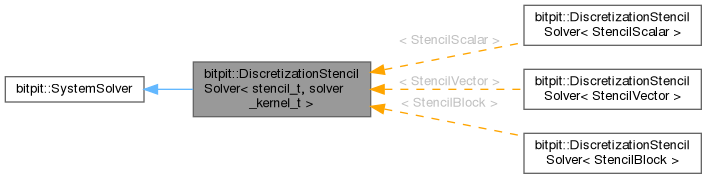

Inheritance diagram for bitpit::DiscretizationStencilSolver< stencil_t, solver_kernel_t >:

Collaboration diagram for bitpit::DiscretizationStencilSolver< stencil_t, solver_kernel_t >:

Public Types
typedef DiscretizationStencilSolverAssembler< stencil_t, solver_kernel_t >	Assembler
Public Types inherited from bitpit::SystemSolver
typedef SystemMatrixAssembler	Assembler
enum	FileFormat { FILE_BINARY , FILE_ASCII }

Public Member Functions
void	assembly (const Assembler &assembler)
template<typename stencil_container_t = std::vector<stencil_t>>
void	assembly (const stencil_container_t &stencils)
template<typename stencil_container_t = std::vector<stencil_t>>
void	assembly (MPI_Comm communicator, bool partitioned, const stencil_container_t &stencils)
void	clear () override
void	matrixAssembly (const Assembler &assembler)
void	matrixUpdate (long nRows, const long *rows, const Assembler &assembler)
void	solve ()
template<typename stencil_container_t = std::vector<stencil_t>>
void	update (const std::vector< long > &rows, const stencil_container_t &stencils)
template<typename stencil_container_t = std::vector<stencil_t>>
void	update (const stencil_container_t &stencils)
void	update (long nRows, const long *rows, const Assembler &assembler)
template<typename stencil_container_t = std::vector<stencil_t>>
void	update (std::size_t nRows, const long *rows, const stencil_container_t &stencils)
Public Member Functions inherited from bitpit::SystemSolver
	SystemSolver (bool debug=false)
	SystemSolver (bool flatten, bool transpose, bool debug)
	SystemSolver (bool transpose, bool debug)
	SystemSolver (const std::string &prefix, bool debug=false)
	SystemSolver (const std::string &prefix, bool flatten, bool transpose, bool debug)
	SystemSolver (const std::string &prefix, bool transpose, bool debug)
virtual	~SystemSolver ()
void	assembly (const Assembler &assembler)
void	assembly (const Assembler &assembler, const SystemMatrixOrdering &reordering)
void	assembly (const SparseMatrix &matrix)
void	assembly (const SparseMatrix &matrix, const SystemMatrixOrdering &reordering)
virtual void	clearWorkspace ()
void	dumpSystem (const std::string &header, const std::string &directory, const std::string &prefix="") const
void	enableForceConsistency (bool enable)
virtual void	exportMatrix (const std::string &filePath, FileFormat exportFormat=FILE_BINARY) const
virtual void	exportRHS (const std::string &filePath, FileFormat exportFormat=FILE_BINARY) const
virtual void	exportSolution (const std::string &filePath, FileFormat exportFormat=FILE_BINARY) const
virtual int	getBlockSize () const
long	getColCount () const
long	getColElementCount () const
long	getColGlobalCount () const
long	getColGlobalElementCount () const
KSPOptions &	getKSPOptions ()
const KSPOptions &	getKSPOptions () const
const KSPStatus &	getKSPStatus () const
double *	getRHSRawPtr ()
const double *	getRHSRawPtr () const
const double *	getRHSRawReadPtr () const
long	getRowCount () const
long	getRowElementCount () const
long	getRowGlobalCount () const
long	getRowGlobalElementCount () const
double *	getSolutionRawPtr ()
const double *	getSolutionRawPtr () const
const double *	getSolutionRawReadPtr () const
bool	getTranspose () const
virtual void	importMatrix (const std::string &filePath)
virtual void	importRHS (const std::string &filePath)
virtual void	importSolution (const std::string &filePath)
bool	isAssembled () const
bool	isForceConsistencyEnabled () const
bool	isPartitioned () const
void	restoreRHSRawPtr (double *raw_rhs)
void	restoreRHSRawReadPtr (const double *raw_rhs) const
void	restoreSolutionRawPtr (double *raw_solution)
void	restoreSolutionRawReadPtr (const double *raw_solution) const
void	restoreSystem (MPI_Comm communicator, bool redistribute, const std::string &directory, const std::string &prefix="")
virtual void	setNullSpace ()
void	setTranspose (bool transpose)
void	solve ()
void	solve (const std::vector< double > &rhs, std::vector< double > *solution)
void	unsetNullSpace ()
void	update (const Assembler &assembler)
void	update (const SparseMatrix &elements)
void	update (long nRows, const long *rows, const Assembler &assembler)
void	update (long nRows, const long *rows, const SparseMatrix &elements)

Protected Member Functions
void	assembleConstants (const Assembler &assembler)
void	updateConstants (std::size_t nRows, const long *rows, const Assembler &assembler)
Protected Member Functions inherited from bitpit::SystemSolver
template<typename DerivedSystemSolver>
void	assembly (const typename DerivedSystemSolver::Assembler &assembler, const SystemMatrixOrdering &reordering)
void	clearReordering ()
virtual void	createKSP ()
void	createMatrix (int rowBlockSize, int colBlockSize, int nNestRows, int nNestCols, Mat *subMatrices, Mat *matrix) const
void	createMatrix (int rowBlockSize, int colBlockSize, Mat *matrix) const
void	createVector (int blockSize, int nestSize, Vec *subVectors, Vec *vector) const
void	createVector (int blockSize, Vec *vector) const
virtual void	destroyKSP ()
virtual void	destroyKSPOptions ()
virtual void	destroyKSPStatus ()
void	destroyMatrix (Mat *matrix) const
void	destroyVector (Vec *vector) const
virtual void	dumpInfo (std::ostream &stream) const
void	dumpMatrix (Mat matrix, const std::string &directory, const std::string &name) const
void	dumpVector (Vec vector, const std::string &directory, const std::string &name) const
void	dumpVector (Vec vector, VectorSide side, const std::string &directory, const std::string &name) const
void	exportMatrix (Mat matrix, const std::string &filePath, FileFormat fileFormat) const
void	exportVector (Vec vector, const std::string &filePath, FileFormat fileFormat) const
void	exportVector (Vec vector, std::vector< double > *data) const
virtual void	fillKSPStatus ()
virtual void	fillKSPStatus (KSP ksp, KSPStatus *status) const
void	fillMatrix (Mat matrix, const std::string &filePath) const
void	fillVector (Vec vector, const std::string &filePath) const
void	fillVector (Vec vector, const std::vector< double > &data) const
virtual void	finalizeKSP ()
const MPI_Comm &	getCommunicator () const
std::string	getDataFilePath (const std::string &directory, const std::string &name) const
virtual int	getDumpVersion () const
std::string	getFilePath (const std::string &directory, const std::string &name) const
std::string	getInfoFilePath (const std::string &directory, const std::string &name) const
virtual void	initializeKSPOptions ()
virtual void	initializeKSPStatus ()
void	matrixAssembly (const Assembler &assembler)
virtual void	matrixDestroy ()
virtual void	matrixDump (std::ostream &systemStream, const std::string &directory, const std::string &prefix) const
virtual void	matrixFill (const std::string &filePath)
virtual void	matrixRestore (std::istream &systemStream, const std::string &directory, const std::string &prefix, bool redistribute)
void	matrixUpdate (long nRows, const long *rows, const Assembler &assembler)
virtual void	postKrylovSetupActions ()
virtual void	postKSPSolveActions ()
virtual void	postPreconditionerSetupActions ()
virtual void	preKrylovSetupActions ()
virtual void	preKSPSolveActions ()
virtual void	prepareKSP ()
virtual void	prePreconditionerSetupActions ()
void	reorderVector (Vec vector, IS permutations, bool invert) const
virtual void	resetKSPOptions (KSPOptions *options) const
virtual void	resetKSPStatus ()
virtual void	resetKSPStatus (KSPStatus *status) const
virtual void	restoreInfo (std::istream &stream)
void	restoreMatrix (const std::string &directory, const std::string &name, bool redistribute, Mat *matrix) const
void	restoreVector (const std::string &directory, const std::string &name, bool redistribute, Vec *vector) const
void	restoreVector (const std::string &directory, const std::string &name, Mat matrix, VectorSide side, Vec *vector) const
void	restoreVector (const std::string &directory, const std::string &name, std::size_t localSize, std::size_t globalSize, Vec *vector) const
void	setReordering (long nRows, long nCols, const SystemMatrixOrdering &reordering)
virtual void	setupKrylov ()
virtual void	setupKrylov (KSP ksp, const KSPOptions &options) const
virtual void	setupPreconditioner ()
virtual void	setupPreconditioner (PC pc, const KSPOptions &options) const
virtual void	solveKSP ()
template<typename DerivedSystemSolver>
void	update (long nRows, const long *rows, const typename DerivedSystemSolver::Assembler &assembler)
virtual void	vectorsCreate ()
virtual void	vectorsDestroy ()
virtual void	vectorsDump (std::ostream &systemStream, const std::string &directory, const std::string &prefix) const
virtual void	vectorsFill (const std::string &rhsFilePath, const std::string &solutionFilePath)
virtual void	vectorsFill (const std::vector< double > &rhs, const std::vector< double > &solution)
virtual void	vectorsReorder (bool invert)
virtual void	vectorsRestore (std::istream &systemStream, const std::string &directory, const std::string &prefix)

Protected Attributes
std::vector< double >	m_constants
Protected Attributes inherited from bitpit::SystemSolver
Mat	m_A
IS	m_colReordering
bool	m_convergenceMonitorEnabled
bool	m_flatten
KSP	m_KSP
bool	m_KSPDirty
KSPOptions	m_KSPOptions
KSPStatus	m_KSPStatus
Vec	m_rhs
IS	m_rowReordering
Vec	m_solution
bool	m_transpose

Additional Inherited Members
Protected Types inherited from bitpit::SystemSolver
enum	VectorSide { VECTOR_SIDE_RIGHT , VECTOR_SIDE_LEFT }

Detailed Description

template<typename stencil_t, typename solver_kernel_t = SystemSolver>
class bitpit::DiscretizationStencilSolver< stencil_t, solver_kernel_t >

The DiscretizationStencilSolver class handles the solution of linear systems assembled from discretization stencils.

Definition at line 235 of file stencil_solver.hpp.

Member Typedef Documentation

Assembler

template<typename stencil_t, typename solver_kernel_t = SystemSolver>

typedef DiscretizationStencilSolverAssembler<stencil_t, solver_kernel_t> bitpit::DiscretizationStencilSolver< stencil_t, solver_kernel_t >::Assembler

Definition at line 238 of file stencil_solver.hpp.

Member Function Documentation

assembleConstants()

template<typename stencil_t, typename solver_kernel_t>

void bitpit::DiscretizationStencilSolver< stencil_t, solver_kernel_t >::assembleConstants ( const Assembler & assembler )

protected

Assemble the constants associated with stencil solver.

Parameters

assembler

is the solver assembler

Definition at line 1199 of file stencil_solver.tpp.

assembly() [1/3]

template<typename stencil_t, typename solver_kernel_t>

void bitpit::DiscretizationStencilSolver< stencil_t, solver_kernel_t >::assembly

(

const Assembler &

assembler

)

Assembly the system.

After assembying th system solver, its options will be reset.

Parameters

assembler	is the matrix assembler
reordering	is the reordering that will be applied when assembling the system

Definition at line 1073 of file stencil_solver.tpp.

assembly() [2/3]

template<typename stencil_t, typename solver_kernel_t>

template<typename stencil_container_t>

void bitpit::DiscretizationStencilSolver< stencil_t, solver_kernel_t >::assembly

(

const stencil_container_t &

stencils

)

Assembly the stencil solver.

After assembying th system solver, its options will be reset.

Parameters

stencils

are the stencils

Definition at line 1027 of file stencil_solver.tpp.

assembly() [3/3]

template<typename stencil_t, typename solver_kernel_t>

template<typename stencil_container_t>

void bitpit::DiscretizationStencilSolver< stencil_t, solver_kernel_t >::assembly	(	MPI_Comm	communicator,
		bool	partitioned,
		const stencil_container_t &	stencils )

Initialize the stencil solver.

Parameters

partitioned	controls if the matrix is partitioned
communicator	is the MPI communicator
stencils	are the stencils

Definition at line 1041 of file stencil_solver.tpp.

clear()

template<typename stencil_t, typename solver_kernel_t>

void bitpit::DiscretizationStencilSolver< stencil_t, solver_kernel_t >::clear ( )

overridevirtual

Clear the stencil solver

Reimplemented from bitpit::SystemSolver.

Definition at line 1010 of file stencil_solver.tpp.

matrixAssembly()

template<typename stencil_t, typename solver_kernel_t>

void bitpit::DiscretizationStencilSolver< stencil_t, solver_kernel_t >::matrixAssembly

(

const Assembler &

assembler

)

Assembly the matrix.

Parameters

assembler

is the matrix assembler

Definition at line 1084 of file stencil_solver.tpp.

matrixUpdate()

template<typename stencil_t, typename solver_kernel_t>

void bitpit::DiscretizationStencilSolver< stencil_t, solver_kernel_t >::matrixUpdate	(	long	nRows,
		const long *	rows,
		const Assembler &	assembler )

Update the specified rows of the matrix.

The contents of the specified rows will be replaced by the data provided by the given assembler. If the matrix has not been assembled yet, both the pattern and the values of the matrix will be updated. After the matrix has been assembled only the values will be updated.

The block size of the assembler should be equal to the block size of the matrix.

Parameters

nRows	is the number of rows that will be updated
rows	are the local indices of the rows that will be updated, if a null pointer is passed, the rows that will be updated are the rows from 0 to (nRows - 1).
assembler	is the matrix assembler for the rows that will be updated

Definition at line 1110 of file stencil_solver.tpp.

solve()

template<typename stencil_t, typename solver_kernel_t>

void bitpit::DiscretizationStencilSolver< stencil_t, solver_kernel_t >::solve

(

)

Solve the system.

Definition at line 1243 of file stencil_solver.tpp.

update() [1/4]

template<typename stencil_t, typename solver_kernel_t>

template<typename stencil_container_t>

void bitpit::DiscretizationStencilSolver< stencil_t, solver_kernel_t >::update	(	const std::vector< long > &	rows,
		const stencil_container_t &	stencils )

Update the stencil solver.

Only the values of the system matrix and the values of the constants can be updated, once the system is initialized its pattern cannot be modified.

Parameters

rows	are the global indices of the rows that will be updated
stencils	are the stencils that will be used to update the rows

Definition at line 1145 of file stencil_solver.tpp.

update() [2/4]

template<typename stencil_t, typename solver_kernel_t>

template<typename stencil_container_t>

void bitpit::DiscretizationStencilSolver< stencil_t, solver_kernel_t >::update

(

const stencil_container_t &

stencils

)

Update all the stencil solver.

Only the values of the system matrix and the values of the constants can be updated, once the system is initialized its pattern cannot be modified.

Parameters

stencils

are the stencils that will be used to update the rows

Definition at line 1129 of file stencil_solver.tpp.

update() [3/4]

template<typename stencil_t, typename solver_kernel_t>

void bitpit::DiscretizationStencilSolver< stencil_t, solver_kernel_t >::update	(	long	nRows,
		const long *	rows,
		const Assembler &	assembler )

Update the system.

Only the values of the system matrix can be updated, once the system is assembled its pattern cannot be modified.

Parameters

nRows	is the number of rows that will be updated
rows	are the indices of the rows that will be updated
assembler	is the matrix assembler for the rows that will be updated

Definition at line 1188 of file stencil_solver.tpp.

update() [4/4]

template<typename stencil_t, typename solver_kernel_t>

template<typename stencil_container_t>

void bitpit::DiscretizationStencilSolver< stencil_t, solver_kernel_t >::update	(	std::size_t	nRows,
		const long *	rows,
		const stencil_container_t &	stencils )

Update the stencil solver.

Only the values of the system matrix and the values of the constants can be updated, once the system is initialized its pattern cannot be modified.

Parameters

nRows	is the number of stencils that will be updated
rows	are the rows of the stencils that will be updated, if a null pointer is passed, the stencils that will be updated are the stencils from 0 to (nRows - 1).
stencils	are the stencils that will be used to update the rows

Definition at line 1164 of file stencil_solver.tpp.

updateConstants()

template<typename stencil_t, typename solver_kernel_t>

void bitpit::DiscretizationStencilSolver< stencil_t, solver_kernel_t >::updateConstants ( std::size_t nRows, const long * rows, const Assembler & assembler )

protected

Update the constants associated with stencil solver.

Parameters

nRows	is the number of stencils that will be updated
rows	are the rows of the stencils that will be updated, if a null pointer is passed, the stencils that will be updated are the stencils from 0 to (nRows - 1).
assembler	is the solver assembler

Definition at line 1221 of file stencil_solver.tpp.

Member Data Documentation

m_constants

template<typename stencil_t, typename solver_kernel_t = SystemSolver>

std::vector<double> bitpit::DiscretizationStencilSolver< stencil_t, solver_kernel_t >::m_constants

protected

Definition at line 266 of file stencil_solver.hpp.

---

The documentation for this class was generated from the following files:

• src/discretization/stencil_solver.hpp
• src/discretization/stencil_solver.tpp
