bitpit::LevelSetUnstructuredKernel Class Reference

Implements LevelSetKernel for unstructured meshes. More...

Inheritance diagram for bitpit::LevelSetUnstructuredKernel:

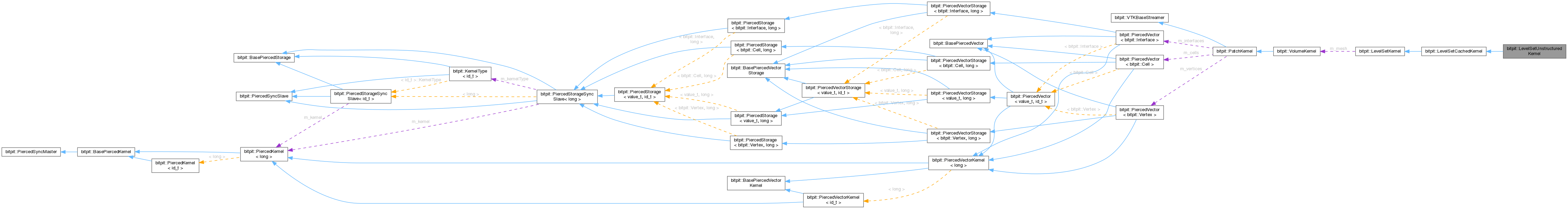

Collaboration diagram for bitpit::LevelSetUnstructuredKernel:

Public Types
template<typename value_t>
using	CellDenseCacheContainer = bitpit::PiercedStorage<value_t, long>
template<typename value_t>
using	CellSparseCacheContainer = std::unordered_map<long, value_t>
Public Types inherited from bitpit::LevelSetCachedKernel
typedef ElementCacheCollection	CellCacheCollection

Public Member Functions
	LevelSetUnstructuredKernel (VolUnstructured &patch, LevelSetFillIn fillIn)
double	computeCellBoundingRadius (long) const override
std::array< double, 3 >	computeCellCentroid (long) const override
double	computeCellTangentRadius (long) const override
VolUnstructured *	getMesh () const override
Public Member Functions inherited from bitpit::LevelSetCachedKernel
	LevelSetCachedKernel (VolumeKernel *, LevelSetFillIn fillIn)
void	clearCaches (bool release=false)
bool	update (const std::vector< adaption::Info > &) override
Public Member Functions inherited from bitpit::LevelSetKernel
	LevelSetKernel ()
	LevelSetKernel (VolumeKernel *mesh, LevelSetFillIn fillIn)
virtual	~LevelSetKernel ()
std::unique_ptr< DataCommunicator >	createDataCommunicator () const
MPI_Comm	getCommunicator () const
double	getDistanceTolerance () const
LevelSetFillIn	getExpectedFillIn () const
virtual bool	intersectCellPlane (long, const std::array< double, 3 > &, const std::array< double, 3 > &, double)
double	isCellInsideBoundingBox (long, const std::array< double BITPIT_COMMA 3 > &, const std::array< double, 3 > &) const
bool	isCommunicatorSet () const
bool	isPointInCell (long, const std::array< double, 3 > &) const

Additional Inherited Members
Protected Member Functions inherited from bitpit::LevelSetCachedKernel
CellCacheCollection &	getCellCacheCollection ()
const CellCacheCollection &	getCellCacheCollection () const
Protected Attributes inherited from bitpit::LevelSetCachedKernel
std::unique_ptr< CellCacheCollection >	m_cellCacheCollection
Protected Attributes inherited from bitpit::LevelSetKernel
MPI_Comm	m_communicator
LevelSetFillIn	m_expectedFillIn
VolumeKernel *	m_mesh

Detailed Description

Implements LevelSetKernel for unstructured meshes.

Definition at line 38 of file levelSetUnstructuredKernel.hpp.

Member Typedef Documentation

CellDenseCacheContainer

template<typename value_t>

using bitpit::LevelSetUnstructuredKernel::CellDenseCacheContainer = bitpit::PiercedStorage<value_t, long>

Definition at line 49 of file levelSetUnstructuredKernel.hpp.

CellSparseCacheContainer

template<typename value_t>

using bitpit::LevelSetUnstructuredKernel::CellSparseCacheContainer = std::unordered_map<long, value_t>

Definition at line 47 of file levelSetUnstructuredKernel.hpp.

Constructor & Destructor Documentation

LevelSetUnstructuredKernel()

bitpit::LevelSetUnstructuredKernel::LevelSetUnstructuredKernel	(	VolUnstructured &	patch,
		LevelSetFillIn	fillIn )

Constructor

Parameters

patch	is the underlying mesh
fillIn	expected kernel fill-in

Definition at line 43 of file levelSetUnstructuredKernel.cpp.

Member Function Documentation

computeCellBoundingRadius()

double bitpit::LevelSetUnstructuredKernel::computeCellBoundingRadius ( long id ) const

overridevirtual

Computes the radius of the bounding sphere associated with the specified cell.

The bounding sphere is the sphere with the minimum radius that contains all the cell vertices and has the center in the cell centroid.

Parameters

[in]

id

is the id of cell

Returns

The radius of the bounding sphere.

Implements bitpit::LevelSetKernel.

Definition at line 155 of file levelSetUnstructuredKernel.cpp.

computeCellCentroid()

std::array< double, 3 > bitpit::LevelSetUnstructuredKernel::computeCellCentroid ( long id ) const

overridevirtual

Computes the centroid of the specfified cell.

Parameters

[in]

id

is the id of cell

Returns

The centroid of the cell.

Implements bitpit::LevelSetKernel.

Definition at line 75 of file levelSetUnstructuredKernel.cpp.

computeCellTangentRadius()

double bitpit::LevelSetUnstructuredKernel::computeCellTangentRadius ( long id ) const

overridevirtual

Computes the radius of the tangent sphere associated with the specified cell.

The tangent sphere is a sphere having the center in the cell centroid and tangent to the cell.

Parameters

[in]

id

is the id of cell

Returns

The radius of the tangent sphere.

Implements bitpit::LevelSetKernel.

Definition at line 107 of file levelSetUnstructuredKernel.cpp.

getMesh()

VolUnstructured * bitpit::LevelSetUnstructuredKernel::getMesh ( ) const

overridevirtual

Returns a pointer to VolUnstructured

Returns

pointer to VolUnstructured

Implements bitpit::LevelSetKernel.

Definition at line 65 of file levelSetUnstructuredKernel.cpp.

---

The documentation for this class was generated from the following files:

• src/levelset/levelSetUnstructuredKernel.hpp
• src/levelset/levelSetUnstructuredKernel.cpp
