bitpit::PiercedStorageSyncSlave< id_t > Class Template Reference

Base class for defining storages that acts like a slave in pierced synchronization. More...

#include <piercedStorage.hpp>

Inheritance diagram for bitpit::PiercedStorageSyncSlave< id_t >:

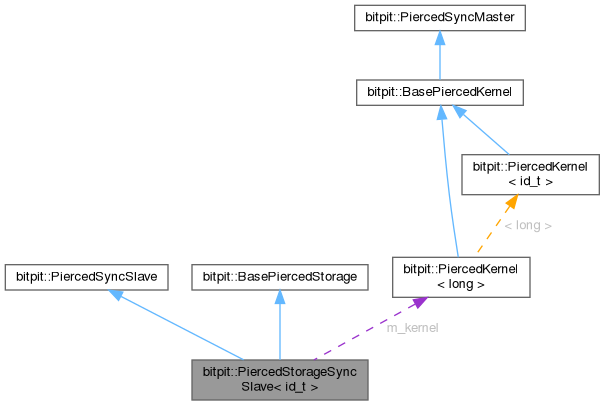

Collaboration diagram for bitpit::PiercedStorageSyncSlave< id_t >:

Public Types
typedef Kernel< id_t >::id_type	id_type
template<typename PK_id_t>
using	Kernel = PiercedKernel<PK_id_t>
typedef Kernel< id_t >	kernel_t
enum	KernelType { KERNEL_NONE = -1 , KERNEL_STATIC = 0 , KERNEL_DYNAMIC = 1 }

Public Member Functions
virtual	~PiercedStorageSyncSlave ()
const PiercedKernel< id_t > *	getKernel () const
KernelType	getKernelType () const
PiercedSyncMaster::SyncMode	getSyncMode () const
void	setDynamicKernel (const PiercedKernel< id_t > *kernel, PiercedSyncMaster::SyncMode syncMode)
void	setStaticKernel (const PiercedKernel< id_t > *kernel)
void	swap (PiercedStorageSyncSlave< id_t > &other) noexcept
void	unsetKernel (bool release=true)

Protected Member Functions
	PiercedStorageSyncSlave ()
	PiercedStorageSyncSlave (const PiercedKernel< id_t > *kernel)
	PiercedStorageSyncSlave (const PiercedKernel< id_t > *kernel, PiercedSyncMaster::SyncMode syncMode)
	PiercedStorageSyncSlave (const PiercedStorageSyncSlave< id_t > &other)
	PiercedStorageSyncSlave (const PiercedStorageSyncSlave< id_t > &other, const PiercedKernel< id_t > *kernel)
	PiercedStorageSyncSlave (const PiercedStorageSyncSlave< id_t > &other, const PiercedKernel< id_t > *kernel, PiercedSyncMaster::SyncMode syncMode)
	PiercedStorageSyncSlave (PiercedStorageSyncSlave< id_t > &&other)
	PiercedStorageSyncSlave (PiercedStorageSyncSlave< id_t > &&other, const PiercedKernel< id_t > *kernel)
	PiercedStorageSyncSlave (PiercedStorageSyncSlave< id_t > &&other, const PiercedKernel< id_t > *kernel, PiercedSyncMaster::SyncMode syncMode)
virtual void	_postSetDynamicKernel ()
virtual void	_postSetStaticKernel ()
virtual void	_postUnsetKernel (bool release=true)
void	detachKernel ()
Protected Member Functions inherited from bitpit::PiercedSyncSlave
	PiercedSyncSlave ()
virtual void	commitSyncAction (const PiercedSyncAction &action)=0
void	swap (PiercedSyncSlave &other) noexcept

Protected Attributes
const PiercedKernel< id_t > *	m_kernel
KernelType	m_kernelType

Detailed Description

template<typename id_t = long>
class bitpit::PiercedStorageSyncSlave< id_t >

Base class for defining storages that acts like a slave in pierced synchronization.

Definition at line 66 of file piercedStorage.hpp.

Member Typedef Documentation

id_type

template<typename id_t = long>

typedef Kernel<id_t>::id_type bitpit::PiercedStorageSyncSlave< id_t >::id_type

Type of ids stored in the container

Definition at line 82 of file piercedStorage.hpp.

Kernel

template<typename id_t = long>

template<typename PK_id_t>

using bitpit::PiercedStorageSyncSlave< id_t >::Kernel = PiercedKernel<PK_id_t>

Kernel template

Definition at line 75 of file piercedStorage.hpp.

kernel_t

template<typename id_t = long>

typedef Kernel<id_t> bitpit::PiercedStorageSyncSlave< id_t >::kernel_t

Kernel

Definition at line 87 of file piercedStorage.hpp.

Member Enumeration Documentation

KernelType

template<typename id_t = long>

enum bitpit::PiercedStorageSyncSlave::KernelType

Definition at line 90 of file piercedStorage.hpp.

Constructor & Destructor Documentation

~PiercedStorageSyncSlave()

template<typename id_t>

bitpit::PiercedStorageSyncSlave< id_t >::~PiercedStorageSyncSlave ( )

virtual

Destructor

Definition at line 220 of file piercedStorage.tpp.

PiercedStorageSyncSlave() [1/9]

template<typename id_t>

bitpit::PiercedStorageSyncSlave< id_t >::PiercedStorageSyncSlave ( )

protected

Constructor.

Definition at line 34 of file piercedStorage.tpp.

PiercedStorageSyncSlave() [2/9]

template<typename id_t>

bitpit::PiercedStorageSyncSlave< id_t >::PiercedStorageSyncSlave ( const PiercedKernel< id_t > * kernel )

protected

Constructor.

Parameters

kernel

is the kernel that will be set

Definition at line 45 of file piercedStorage.tpp.

PiercedStorageSyncSlave() [3/9]

template<typename id_t>

bitpit::PiercedStorageSyncSlave< id_t >::PiercedStorageSyncSlave ( const PiercedKernel< id_t > * kernel, PiercedSyncMaster::SyncMode syncMode )

protected

Constructor.

Parameters

kernel	is the kernel that will be set
syncMode	is the synchronization mode that will be used for the storage

Definition at line 58 of file piercedStorage.tpp.

PiercedStorageSyncSlave() [4/9]

template<typename id_t>

bitpit::PiercedStorageSyncSlave< id_t >::PiercedStorageSyncSlave ( const PiercedStorageSyncSlave< id_t > & other )

protected

Constructor.

Parameters

other

is another container of the same type (i.e., instantiated with the same template parameters) whose content is copied in this container

Definition at line 71 of file piercedStorage.tpp.

PiercedStorageSyncSlave() [5/9]

template<typename id_t>

bitpit::PiercedStorageSyncSlave< id_t >::PiercedStorageSyncSlave ( const PiercedStorageSyncSlave< id_t > & other, const PiercedKernel< id_t > * kernel )

protected

Constructor.

The newly created pierced sync slave will be associated with the given static kernel.

Parameters

other	is another container of the same type (i.e., instantiated with the same template parameters) whose content is copied in this container
kernel	is the kernel that will be set

Definition at line 108 of file piercedStorage.tpp.

PiercedStorageSyncSlave() [6/9]

template<typename id_t>

bitpit::PiercedStorageSyncSlave< id_t >::PiercedStorageSyncSlave ( const PiercedStorageSyncSlave< id_t > & other, const PiercedKernel< id_t > * kernel, PiercedSyncMaster::SyncMode syncMode )

protected

Constructor.

The newly created pierced sync slave will be associated with the given dynamic kernel and will use the specified synchronization mode.

Parameters

other	is another container of the same type (i.e., instantiated with the same template parameters) whose content is copied in this container
kernel	is the kernel that will be set
syncMode	is the synchronization mode that will be used for the storage

Definition at line 128 of file piercedStorage.tpp.

PiercedStorageSyncSlave() [7/9]

template<typename id_t>

bitpit::PiercedStorageSyncSlave< id_t >::PiercedStorageSyncSlave ( PiercedStorageSyncSlave< id_t > && other )

protected

Constructor.

Parameters

other

is another container of the same type (i.e., instantiated with the same template parameters) whose content is moved in this container

Definition at line 143 of file piercedStorage.tpp.

PiercedStorageSyncSlave() [8/9]

template<typename id_t>

bitpit::PiercedStorageSyncSlave< id_t >::PiercedStorageSyncSlave ( PiercedStorageSyncSlave< id_t > && other, const PiercedKernel< id_t > * kernel )

protected

Constructor.

The newly created pierced sync slave will be associated with the given static kernel.

Parameters

other	is another container of the same type (i.e., instantiated with the same template parameters) whose content is moved in this container
kernel	is the kernel that will be set

Definition at line 184 of file piercedStorage.tpp.

PiercedStorageSyncSlave() [9/9]

template<typename id_t>

bitpit::PiercedStorageSyncSlave< id_t >::PiercedStorageSyncSlave ( PiercedStorageSyncSlave< id_t > && other, const PiercedKernel< id_t > * kernel, PiercedSyncMaster::SyncMode syncMode )

protected

Constructor.

The newly created pierced sync slave will be associated with the given dynamic kernel and will use the given synchronization mode.

Parameters

other	is another container of the same type (i.e., instantiated with the same template parameters) whose content is moved in this container
kernel	is the kernel that will be set
syncMode	is the synchronization mode that will be used for the storage

Definition at line 206 of file piercedStorage.tpp.

Member Function Documentation

_postSetDynamicKernel()

template<typename id_t>

void bitpit::PiercedStorageSyncSlave< id_t >::_postSetDynamicKernel ( )

protectedvirtual

Internal function that will be called after setting a dynamic kernel.

Reimplemented in bitpit::PiercedStorage< value_t, id_t >, bitpit::PiercedStorage< bitpit::Cell, long >, bitpit::PiercedStorage< bitpit::Interface, long >, bitpit::PiercedStorage< bitpit::mapping::Info >, bitpit::PiercedStorage< bitpit::Vertex, long >, bitpit::PiercedStorage< bool >, bitpit::PiercedStorage< bool, key_t >, bitpit::PiercedStorage< double >, bitpit::PiercedStorage< double >, bitpit::PiercedStorage< double, long >, bitpit::PiercedStorage< long, long >, bitpit::PiercedStorage< PS_value_t, PS_id_t >, bitpit::PiercedStorage< PS_value_t, PS_id_t >, bitpit::PiercedStorage< std::array< double, 3 > >, bitpit::PiercedStorage< std::array< double, 3 > >, bitpit::PiercedStorage< std::array< double, 3 >, long >, bitpit::PiercedStorage< std::array< std::array< double, 3 >, 2 >, long >, bitpit::PiercedStorage< std::array< std::array< double, 3 >, 2 >, long >, bitpit::PiercedStorage< std::size_t >, bitpit::PiercedStorage< stencil_t >, bitpit::PiercedStorage< value_t, key_t >, bitpit::PiercedStorage< value_t, long >, and bitpit::PiercedStorage< value_t, long >.

Definition at line 297 of file piercedStorage.tpp.

_postSetStaticKernel()

template<typename id_t>

void bitpit::PiercedStorageSyncSlave< id_t >::_postSetStaticKernel ( )

protectedvirtual

Internal function that will be called after setting a static kernel.

Parameters

kernel

is the kernel that will be set

Reimplemented in bitpit::PiercedStorage< value_t, id_t >, bitpit::PiercedStorage< bitpit::Cell, long >, bitpit::PiercedStorage< bitpit::Interface, long >, bitpit::PiercedStorage< bitpit::mapping::Info >, bitpit::PiercedStorage< bitpit::Vertex, long >, bitpit::PiercedStorage< bool >, bitpit::PiercedStorage< bool, key_t >, bitpit::PiercedStorage< double >, bitpit::PiercedStorage< double >, bitpit::PiercedStorage< double, long >, bitpit::PiercedStorage< long, long >, bitpit::PiercedStorage< PS_value_t, PS_id_t >, bitpit::PiercedStorage< PS_value_t, PS_id_t >, bitpit::PiercedStorage< std::array< double, 3 > >, bitpit::PiercedStorage< std::array< double, 3 > >, bitpit::PiercedStorage< std::array< double, 3 >, long >, bitpit::PiercedStorage< std::array< std::array< double, 3 >, 2 >, long >, bitpit::PiercedStorage< std::array< std::array< double, 3 >, 2 >, long >, bitpit::PiercedStorage< std::size_t >, bitpit::PiercedStorage< stencil_t >, bitpit::PiercedStorage< value_t, key_t >, bitpit::PiercedStorage< value_t, long >, and bitpit::PiercedStorage< value_t, long >.

Definition at line 260 of file piercedStorage.tpp.

_postUnsetKernel()

template<typename id_t>

void bitpit::PiercedStorageSyncSlave< id_t >::_postUnsetKernel ( bool release = true )

protectedvirtual

Internal function that will be called after unsetting the kernel.

Parameters

release

if it's true the memory hold by the container will be released, otherwise the container will be cleared but its memory will not be released

Reimplemented in bitpit::PiercedStorage< value_t, id_t >, bitpit::PiercedStorage< bitpit::Cell, long >, bitpit::PiercedStorage< bitpit::Interface, long >, bitpit::PiercedStorage< bitpit::mapping::Info >, bitpit::PiercedStorage< bitpit::Vertex, long >, bitpit::PiercedStorage< bool >, bitpit::PiercedStorage< bool, key_t >, bitpit::PiercedStorage< double >, bitpit::PiercedStorage< double >, bitpit::PiercedStorage< double, long >, bitpit::PiercedStorage< long, long >, bitpit::PiercedStorage< PS_value_t, PS_id_t >, bitpit::PiercedStorage< PS_value_t, PS_id_t >, bitpit::PiercedStorage< std::array< double, 3 > >, bitpit::PiercedStorage< std::array< double, 3 > >, bitpit::PiercedStorage< std::array< double, 3 >, long >, bitpit::PiercedStorage< std::array< std::array< double, 3 >, 2 >, long >, bitpit::PiercedStorage< std::array< std::array< double, 3 >, 2 >, long >, bitpit::PiercedStorage< std::size_t >, bitpit::PiercedStorage< stencil_t >, bitpit::PiercedStorage< value_t, key_t >, bitpit::PiercedStorage< value_t, long >, and bitpit::PiercedStorage< value_t, long >.

Definition at line 327 of file piercedStorage.tpp.

detachKernel()

template<typename id_t>

void bitpit::PiercedStorageSyncSlave< id_t >::detachKernel ( )

protected

Detach the kernel without clearing the container.

Definition at line 338 of file piercedStorage.tpp.

getKernel()

template<typename id_t>

const PiercedKernel< id_t > * bitpit::PiercedStorageSyncSlave< id_t >::getKernel

(

)

const

Gets a constant reference to the kernel of the storage

Returns

A constant reference to the kernel of the storage.

Definition at line 360 of file piercedStorage.tpp.

getKernelType()

template<typename id_t>

PiercedStorageSyncSlave< id_t >::KernelType bitpit::PiercedStorageSyncSlave< id_t >::getKernelType

(

)

const

Get the type of kernel set for the storage.

Returns

The type of kernel set for the storage.

Definition at line 371 of file piercedStorage.tpp.

getSyncMode()

template<typename id_t>

PiercedSyncMaster::SyncMode bitpit::PiercedStorageSyncSlave< id_t >::getSyncMode

(

)

const

Gets the syncronization mode of the storage.

Returns

The synchronization mode of the storage.

Definition at line 382 of file piercedStorage.tpp.

setDynamicKernel()

template<typename id_t>

void bitpit::PiercedStorageSyncSlave< id_t >::setDynamicKernel	(	const PiercedKernel< id_t > *	kernel,
		PiercedSyncMaster::SyncMode	syncMode )

Sets the kernel that will be used by the storage.

The storage will dynamically synchronized with the kernel.

If a kernel has already been set for the storage, it is mandatory to unset it before setting a new one. Calling this function when the kernel is already associated with a kernel will lead to an exception being thrown.

Parameters

kernel	is the kernel that will be set
syncMode	is the synchronization mode that will be used for the storage

Definition at line 278 of file piercedStorage.tpp.

setStaticKernel()

template<typename id_t>

void bitpit::PiercedStorageSyncSlave< id_t >::setStaticKernel

(

const PiercedKernel< id_t > *

kernel

)

Sets the kernel that will be used by the storage

The storage will NOT be synchronized with the kernel. Every change to the kernel can potentially invalidate the link between kernel and storage.

If a kernel has already been set for the storage, it is mandatory to unset it before setting a new one. Calling this function when the kernel is already associated with a kernel will lead to an exception being thrown.

Parameters

kernel

is the kernel that will be set

Definition at line 238 of file piercedStorage.tpp.

swap()

template<typename id_t>

void bitpit::PiercedStorageSyncSlave< id_t >::swap ( PiercedStorageSyncSlave< id_t > & other )

noexcept

Exchanges the content of the storage by the content of x, which is another storage object of the same type. Sizes may differ but the number of fields has to be the same.

After the call to this member function, the elements in this storage are those which were in x before the call, and the elements of x are those which were in this. All iterators, references and pointers remain valid for the swapped objects.

Parameters

other

is another storage of the same type (i.e., instantiated with the same template parameters) whose content is swapped with that of this storage.

Definition at line 406 of file piercedStorage.tpp.

unsetKernel()

template<typename id_t>

void bitpit::PiercedStorageSyncSlave< id_t >::unsetKernel

(

bool

release = true

)

Unsets the kernel.

Parameters

release

if it's true the memory hold by the container will be released, otherwise the container will be cleared but its memory will not be released

Definition at line 310 of file piercedStorage.tpp.

Member Data Documentation

m_kernel

template<typename id_t = long>

const PiercedKernel<id_t>* bitpit::PiercedStorageSyncSlave< id_t >::m_kernel

protected

Definition at line 111 of file piercedStorage.hpp.

m_kernelType

template<typename id_t = long>

KernelType bitpit::PiercedStorageSyncSlave< id_t >::m_kernelType

protected

Definition at line 112 of file piercedStorage.hpp.

---

The documentation for this class was generated from the following files:

• src/containers/piercedKernel.hpp
• src/containers/piercedStorage.hpp
• src/containers/piercedStorage.tpp
