The QualifiedInterfaceHalfEdge class defines interface half-edges. More...

Inheritance diagram for bitpit::QualifiedInterfaceHalfEdge< QualifiedInterface >:

[legend]

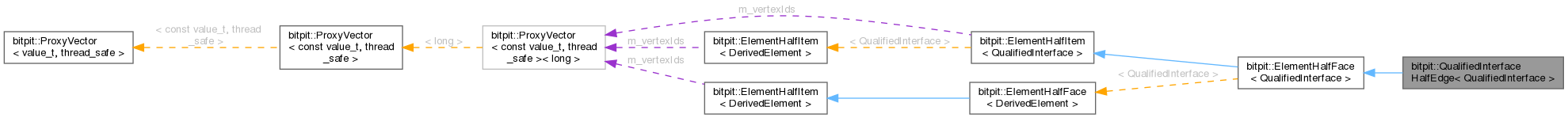

Collaboration diagram for bitpit::QualifiedInterfaceHalfEdge< QualifiedInterface >:

[legend]

Public Types
typedef ElementHalfFace< QualifiedInterface >::Winding	Winding

Public Types inherited from bitpit::ElementHalfFace< QualifiedInterface >
typedef ElementHalfItem< QualifiedInterface >::Winding	Winding

Public Types inherited from bitpit::ElementHalfItem< QualifiedInterface >
enum	Winding

Public Member Functions
	QualifiedInterfaceHalfEdge (QualifiedInterface &interface, int edge, Winding winding=Winding::WINDING_NATURAL)

QualifiedInterface &	getInterface () const

Public Member Functions inherited from bitpit::ElementHalfFace< QualifiedInterface >
int	getFace () const

Public Member Functions inherited from bitpit::ElementHalfItem< QualifiedInterface >
const ConstProxyVector< long > &	getVertexIds () const

Winding	getWinding () const

bool	operator!= (const ElementHalfItem &other) const

bool	operator== (const ElementHalfItem &other) const

void	setWinding (Winding winding)

Additional Inherited Members
Protected Member Functions inherited from bitpit::ElementHalfFace< QualifiedInterface >
	ElementHalfFace (QualifiedInterface &element, int face, Winding winding)

Protected Member Functions inherited from bitpit::ElementHalfItem< QualifiedInterface >
	ElementHalfItem (QualifiedInterface &element, ConstProxyVector< long > &&vertexIds, ElementHalfItem< QualifiedInterface >::Winding winding)

QualifiedInterface &	getElement () const

Protected Attributes inherited from bitpit::ElementHalfFace< QualifiedInterface >
int	m_face

Protected Attributes inherited from bitpit::ElementHalfItem< QualifiedInterface >
QualifiedInterface &	m_element

std::size_t	m_firstVertexId

ConstProxyVector< long >	m_vertexIds

Winding	m_winding

Detailed Description

template<typename QualifiedInterface>
class bitpit::QualifiedInterfaceHalfEdge< QualifiedInterface >

The QualifiedInterfaceHalfEdge class defines interface half-edges.

QualifiedInterfaceHalfEdge is the class that defines interface half-edges. Each edge can be seen as two half-edges: one belonging to an interface and the other belonging to the neighbouring interface. A half-edge is identify by its vertices and by the winding order of the vertices.

Definition at line 84 of file interface.hpp.

Member Typedef Documentation

◆ Winding

template<typename QualifiedInterface>

typedef ElementHalfFace<QualifiedInterface>::Winding bitpit::QualifiedInterfaceHalfEdge< QualifiedInterface >::Winding

Definition at line 87 of file interface.hpp.

Constructor & Destructor Documentation

◆ QualifiedInterfaceHalfEdge()

template<class QualifiedInterface>

bitpit::QualifiedInterfaceHalfEdge< QualifiedInterface >::QualifiedInterfaceHalfEdge	(	QualifiedInterface &	interface,
		int	edge,
		Winding	winding = Winding::WINDING_NATURAL )

Constructor.

Parameters

interface	is a reference to the interface the owns the edge
edge	if the local edge of the interface
winding	is the winding order of the vertices

Definition at line 50 of file interface.tpp.

Member Function Documentation

◆ getInterface()

template<class QualifiedInterface>

QualifiedInterface & bitpit::QualifiedInterfaceHalfEdge< QualifiedInterface >::getInterface ( ) const

Get the element the half-item belongs to.

Returns: Returns the element the half-item belongs to.

Definition at line 61 of file interface.tpp.

The documentation for this class was generated from the following files:

src/patchkernel/interface.hpp
src/patchkernel/interface.tpp
