bitpit::SkdPatchInfo Class Reference

The SkdPatchInfo class allows to store patch information needed for the construction and the utilization of a skd-tree. More...

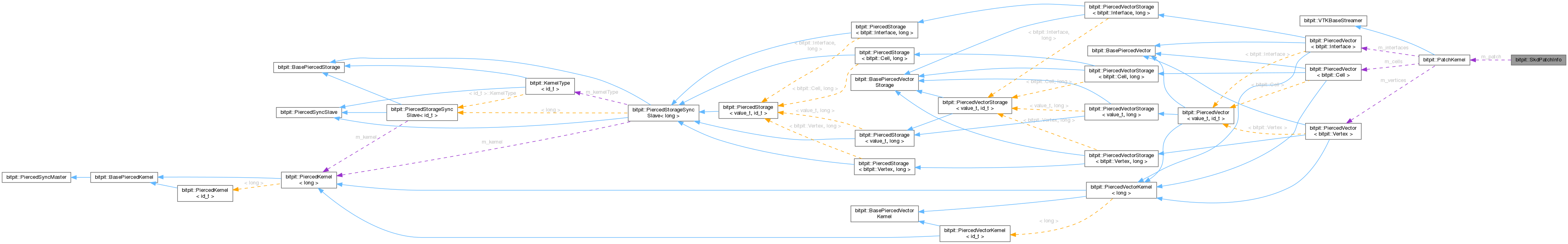

Collaboration diagram for bitpit::SkdPatchInfo:

Public Member Functions
void	buildCache ()
void	buildCache (const PatchKernel::CellConstRange &cellRange)
void	destroyCache ()
std::array< double, 3 >	evalCachedBoxMean (std::size_t rawId) const
double	evalCachedBoxMean (std::size_t rawId, int direction) const
const std::array< std::array< double, 3 >, 2 > &	getCachedBox (std::size_t rawId) const
std::size_t	getCellRawId (std::size_t n) const
const std::vector< std::size_t > &	getCellRawIds () const
const PatchKernel &	getPatch () const

Protected Types
typedef PiercedStorage< std::array< std::array< double, 3 >, 2 >, long >	BoxCache

Protected Member Functions
	SkdPatchInfo (const PatchKernel *patch, const std::vector< std::size_t > *cellRawIds)

Protected Attributes
std::unique_ptr< BoxCache >	m_cellBoxes
const std::vector< std::size_t > *	m_cellRawIds
const PatchKernel *	m_patch

Friends
class	PatchSkdTree

Detailed Description

The SkdPatchInfo class allows to store patch information needed for the construction and the utilization of a skd-tree.

Definition at line 36 of file patch_skd_tree.hpp.

Member Typedef Documentation

BoxCache

typedef PiercedStorage<std::array<std::array<double, 3>, 2>, long> bitpit::SkdPatchInfo::BoxCache

protected

Definition at line 55 of file patch_skd_tree.hpp.

Constructor & Destructor Documentation

SkdPatchInfo()

bitpit::SkdPatchInfo::SkdPatchInfo ( const PatchKernel * patch, const std::vector< std::size_t > * cellRawIds )

protected

Constructor.

Parameters

patch	is the patch
cellRawIds	is the list of cell raw ids

Definition at line 47 of file patch_skd_tree.cpp.

Member Function Documentation

buildCache() [1/2]

void bitpit::SkdPatchInfo::buildCache

(

)

Build the cache.

Definition at line 58 of file patch_skd_tree.cpp.

buildCache() [2/2]

void bitpit::SkdPatchInfo::buildCache

(

const PatchKernel::CellConstRange &

cellRange

)

Build the cache.

Parameters

cellRange

is the range of cells fow which the cache has to be built

Definition at line 70 of file patch_skd_tree.cpp.

destroyCache()

void bitpit::SkdPatchInfo::destroyCache

(

)

Destroy the cache.

Definition at line 85 of file patch_skd_tree.cpp.

evalCachedBoxMean() [1/2]

std::array< double, 3 > bitpit::SkdPatchInfo::evalCachedBoxMean

(

std::size_t

rawId

)

const

Get the average point of the cached bounding box of the specified cell.

Parameters

rawId

is the raw id of the cell

Returns

The average point of the cached bounding box of the specified cell.

Definition at line 141 of file patch_skd_tree.cpp.

evalCachedBoxMean() [2/2]

double bitpit::SkdPatchInfo::evalCachedBoxMean	(	std::size_t	rawId,
		int	direction ) const

Get the average point of the cached bounding box of the specified cell along the given direction.

Parameters

rawId	is the raw id of the cell
direction	is the direction along which the mean is requested

Returns

The average point of the cached bounding box of the specified cell.

Definition at line 155 of file patch_skd_tree.cpp.

getCachedBox()

const std::array< std::array< double, 3 >, 2 > & bitpit::SkdPatchInfo::getCachedBox

(

std::size_t

rawId

)

const

Get a the points that define the bounding box of the specified cell.

The first point defines the minimum point of the bounding box, whereas the second point defines the maximum point of the bounding box.

Parameters

rawId

is the raw id of the cell

Returns

The minimum point of the cached bounding box of the specified cell.

Definition at line 130 of file patch_skd_tree.cpp.

getCellRawId()

std::size_t bitpit::SkdPatchInfo::getCellRawId

(

std::size_t

n

)

const

Get the n-th cell raw id.

Parameters

n	is the requested raw id

Returns

The n-th cell raw id.

Definition at line 116 of file patch_skd_tree.cpp.

getCellRawIds()

const std::vector< std::size_t > & bitpit::SkdPatchInfo::getCellRawIds

(

)

const

Get a constant reference to the list of cell raw ids.

Returns

A constant reference to the list of cell raw ids.

Definition at line 105 of file patch_skd_tree.cpp.

getPatch()

const PatchKernel & bitpit::SkdPatchInfo::getPatch

(

)

const

Get a constant reference to the patch.

Returns

A constant reference to the patch.

Definition at line 95 of file patch_skd_tree.cpp.

Friends And Related Symbol Documentation

PatchSkdTree

friend class PatchSkdTree

friend

Definition at line 38 of file patch_skd_tree.hpp.

Member Data Documentation

m_cellBoxes

std::unique_ptr<BoxCache> bitpit::SkdPatchInfo::m_cellBoxes

protected

Definition at line 62 of file patch_skd_tree.hpp.

m_cellRawIds

const std::vector<std::size_t>* bitpit::SkdPatchInfo::m_cellRawIds

protected

Definition at line 60 of file patch_skd_tree.hpp.

m_patch

const PatchKernel* bitpit::SkdPatchInfo::m_patch

protected

Definition at line 59 of file patch_skd_tree.hpp.

---

The documentation for this class was generated from the following files:

• src/patchkernel/patch_skd_tree.hpp
• src/patchkernel/patch_skd_tree.cpp
