bitpit::LevelSetBooleanBaseObject< SourceLevelSetObject > Class Template Reference

Base class which deals with boolean operation between two LevelSetObjects. More...

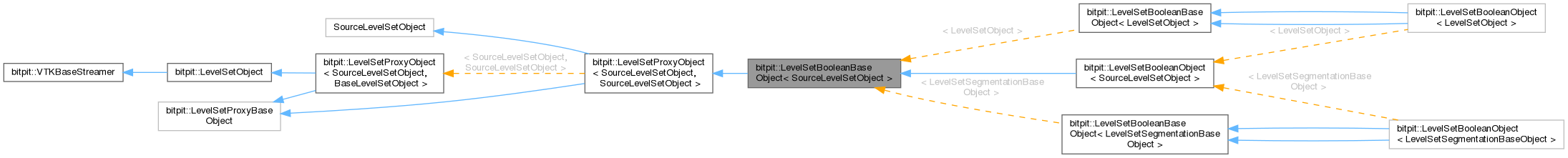

Inheritance diagram for bitpit::LevelSetBooleanBaseObject< SourceLevelSetObject >:

Collaboration diagram for bitpit::LevelSetBooleanBaseObject< SourceLevelSetObject >:

Public Member Functions
bool	empty () const override
const SourceLevelSetObject *	getCellReferenceObject (long id) const override
const SourceLevelSetObject *	getReferenceObject (const std::array< double, 3 > &point) const override
std::vector< const SourceLevelSetObject * >	getSourceObjects () const override
Public Member Functions inherited from bitpit::LevelSetProxyObject< SourceLevelSetObject, SourceLevelSetObject >
int	getCellReferenceObjectId (long id) const override
virtual const SourceLevelSetObject *	getCellReferencePrimaryObject (long id) const
int	getCellReferencePrimaryObjectId (long id) const override
int	getPrimaryObjectId (long) const
std::vector< int >	getPrimarySourceObjectIds () const override
virtual std::vector< const SourceLevelSetObject * >	getPrimarySourceObjects () const
int	getReferenceObjectId (const std::array< double, 3 > &point) const override
virtual const SourceLevelSetObject *	getReferencePrimaryObject (const std::array< double, 3 > &point) const
int	getReferencePrimaryObjectId (const std::array< double, 3 > &point) const override
std::vector< int >	getSourceObjectIds () const override
bool	isCellInNarrowBand (long id) const override
bool	isInNarrowBand (const std::array< double, 3 > &point) const override
bool	isPrimary () const override

Protected Member Functions
	LevelSetBooleanBaseObject (int, LevelSetBooleanOperation, const SourceLevelSetObject *, const SourceLevelSetObject *)
	LevelSetBooleanBaseObject (int, LevelSetBooleanOperation, const std::vector< const SourceLevelSetObject * > &)
template<typename data_t, typename function_t>
data_t	_evalCellFunction (long id, bool signedLevelSet, const function_t &function) const
std::array< double, 3 >	_evalCellGradient (long id, bool signedLevelSet) const override
short	_evalCellSign (long id) const override
double	_evalCellValue (long id, bool signedLevelSet) const override
template<typename data_t, typename function_t>
data_t	_evalFunction (const std::array< double, 3 > &point, bool signedLevelSet, const function_t &function) const
std::array< double, 3 >	_evalGradient (const std::array< double, 3 > &point, bool signedLevelSet) const override
double	_evalValue (const std::array< double, 3 > &point, bool signedLevelSet) const override
void	fillCellPropagatedSignCache () override
void	replaceSourceObject (const SourceLevelSetObject *current, const SourceLevelSetObject *updated) override
Protected Member Functions inherited from bitpit::LevelSetProxyObject< SourceLevelSetObject, SourceLevelSetObject >
	LevelSetProxyObject (int)
void	fillCellLocationCache () override
void	fillCellLocationCache (const std::vector< adaption::Info > &adaptionData) override

Detailed Description

template<typename SourceLevelSetObject>
class bitpit::LevelSetBooleanBaseObject< SourceLevelSetObject >

Base class which deals with boolean operation between two LevelSetObjects.

Definition at line 68 of file levelSetBooleanObject.hpp.

Constructor & Destructor Documentation

LevelSetBooleanBaseObject() [1/2]

template<typename SourceLevelSetObject>

bitpit::LevelSetBooleanBaseObject< SourceLevelSetObject >::LevelSetBooleanBaseObject ( int id, LevelSetBooleanOperation op, const SourceLevelSetObject * source1, const SourceLevelSetObject * source2 )

protected

Constructor taking two objects.

Parameters

[in]	id	identifier of object
[in]	op	type of boolean operation
[in]	source1	pointer to first source object
[in]	source2	pointer to second source object

Definition at line 144 of file levelSetBooleanObject.tpp.

LevelSetBooleanBaseObject() [2/2]

template<typename SourceLevelSetObject>

bitpit::LevelSetBooleanBaseObject< SourceLevelSetObject >::LevelSetBooleanBaseObject ( int id, LevelSetBooleanOperation op, const std::vector< const SourceLevelSetObject * > & sourceObjects )

protected

Constructor taking a vector of objects. The boolean operation will be applied recursivly on each entry.

Parameters

[in]	id	identifier of object
[in]	op	type of boolean operation
[in]	sourceObjects	pointers to source objects

Definition at line 160 of file levelSetBooleanObject.tpp.

Member Function Documentation

_evalCellFunction()

template<typename SourceLevelSetObject>

template<typename data_t, typename function_t>

data_t bitpit::LevelSetBooleanBaseObject< SourceLevelSetObject >::_evalCellFunction ( long id, bool signedLevelSet, const function_t & function ) const

protected

Evaluate the specified function at the specified cell.

Parameters

[in]	id	cell index
[in]	function	is the function that will be evaluated

Returns

The value of the function at specified cell.

Definition at line 412 of file levelSetBooleanObject.tpp.

_evalCellGradient()

template<typename SourceLevelSetObject>

std::array< double, 3 > bitpit::LevelSetBooleanBaseObject< SourceLevelSetObject >::_evalCellGradient ( long id, bool signedLevelSet ) const

overrideprotected

Evaluate levelset gradient at the specified cell.

Parameters

id	is the id of the cell

Returns

The gradient of the levelset at the specified cell.

Definition at line 342 of file levelSetBooleanObject.tpp.

_evalCellSign()

template<typename SourceLevelSetObject>

short bitpit::LevelSetBooleanBaseObject< SourceLevelSetObject >::_evalCellSign ( long id ) const

overrideprotected

Evaluate levelset sign at the specified cell.

Parameters

id	is the id of the cell

Returns

The sign of the levelset at the specified cell.

Definition at line 311 of file levelSetBooleanObject.tpp.

_evalCellValue()

template<typename SourceLevelSetObject>

double bitpit::LevelSetBooleanBaseObject< SourceLevelSetObject >::_evalCellValue ( long id, bool signedLevelSet ) const

overrideprotected

Evaluate levelset value at the specified cell.

Parameters

id	is the id of the cell
signedLevelSet	controls if signed levelset function will be used

Returns

The value of the levelset at the specified cell.

Definition at line 323 of file levelSetBooleanObject.tpp.

_evalFunction()

template<typename SourceLevelSetObject>

template<typename data_t, typename function_t>

data_t bitpit::LevelSetBooleanBaseObject< SourceLevelSetObject >::_evalFunction ( const std::array< double, 3 > & point, bool signedLevelSet, const function_t & function ) const

protected

Evaluate the specified function at the specified point.

Parameters

	point	are the coordinates of the point
[in]	function	is the function that will be evaluated

Returns

The value of the function at specified point.

Definition at line 428 of file levelSetBooleanObject.tpp.

_evalGradient()

template<typename SourceLevelSetObject>

std::array< double, 3 > bitpit::LevelSetBooleanBaseObject< SourceLevelSetObject >::_evalGradient ( const std::array< double, 3 > & point, bool signedLevelSet ) const

overrideprotected

Evaluate levelset gradient at the specified cell.

Parameters

point	are the coordinates of the point
signedLevelSet	controls if signed levelset function will be used

Returns

The gradient of the levelset at the specified cell.

Definition at line 387 of file levelSetBooleanObject.tpp.

_evalValue()

template<typename SourceLevelSetObject>

double bitpit::LevelSetBooleanBaseObject< SourceLevelSetObject >::_evalValue ( const std::array< double, 3 > & point, bool signedLevelSet ) const

overrideprotected

Evaluate levelset value at the specified cell.

Parameters

point	are the coordinates of the point
signedLevelSet	controls if signed levelset function will be used

Returns

The value of the levelset at the specified cell.

Definition at line 367 of file levelSetBooleanObject.tpp.

empty()

template<typename SourceLevelSetObject>

bool bitpit::LevelSetBooleanBaseObject< SourceLevelSetObject >::empty ( ) const

override

Checks if the object is empty.

Returns

Returns true is the object is empty, false otherwise.

Definition at line 172 of file levelSetBooleanObject.tpp.

fillCellPropagatedSignCache()

template<typename SourceLevelSetObject>

void bitpit::LevelSetBooleanBaseObject< SourceLevelSetObject >::fillCellPropagatedSignCache ( )

overrideprotected

Fill the cache that contains the propagated cell sign.

Definition at line 258 of file levelSetBooleanObject.tpp.

getCellReferenceObject()

template<typename SourceLevelSetObject>

const SourceLevelSetObject * bitpit::LevelSetBooleanBaseObject< SourceLevelSetObject >::getCellReferenceObject ( long id ) const

overridevirtual

Get the object that defines the levelset information for the specified cell.

Parameters

[in]

id

cell index

Returns

The object that defines the levelset information for the specified cell.

Implements bitpit::LevelSetProxyObject< SourceLevelSetObject, SourceLevelSetObject >.

Definition at line 443 of file levelSetBooleanObject.tpp.

getReferenceObject()

template<typename SourceLevelSetObject>

const SourceLevelSetObject * bitpit::LevelSetBooleanBaseObject< SourceLevelSetObject >::getReferenceObject ( const std::array< double, 3 > & point ) const

overridevirtual

Get the object that defines the levelset information for the specified point.

Parameters

[in]

point

are the coordinates of the point

Returns

The object that defines the levelset information for the specified point.

Implements bitpit::LevelSetProxyObject< SourceLevelSetObject, SourceLevelSetObject >.

Definition at line 469 of file levelSetBooleanObject.tpp.

getSourceObjects()

template<typename SourceLevelSetObject>

std::vector< const SourceLevelSetObject * > bitpit::LevelSetBooleanBaseObject< SourceLevelSetObject >::getSourceObjects ( ) const

overridevirtual

Get all objects that compose the boolean object

Returns

pointers to all primary objects involved in the definition of the boolean object levelset information.

Implements bitpit::LevelSetProxyObject< SourceLevelSetObject, SourceLevelSetObject >.

Definition at line 494 of file levelSetBooleanObject.tpp.

replaceSourceObject()

template<typename SourceLevelSetObject>

void bitpit::LevelSetBooleanBaseObject< SourceLevelSetObject >::replaceSourceObject ( const SourceLevelSetObject * current, const SourceLevelSetObject * updated )

overrideprotectedvirtual

Replace a source object.

Parameters

[in]	current	current source object
[in]	updated	updated source object

Implements bitpit::LevelSetProxyObject< SourceLevelSetObject, SourceLevelSetObject >.

Definition at line 240 of file levelSetBooleanObject.tpp.

---

The documentation for this class was generated from the following files:

• src/levelset/levelSetBooleanObject.hpp
• src/levelset/levelSetBooleanObject.tpp
