bitpit::ElementHalfFace< DerivedElement > Class Template Reference

The ElementHalfFace class defines element half-faces. More...

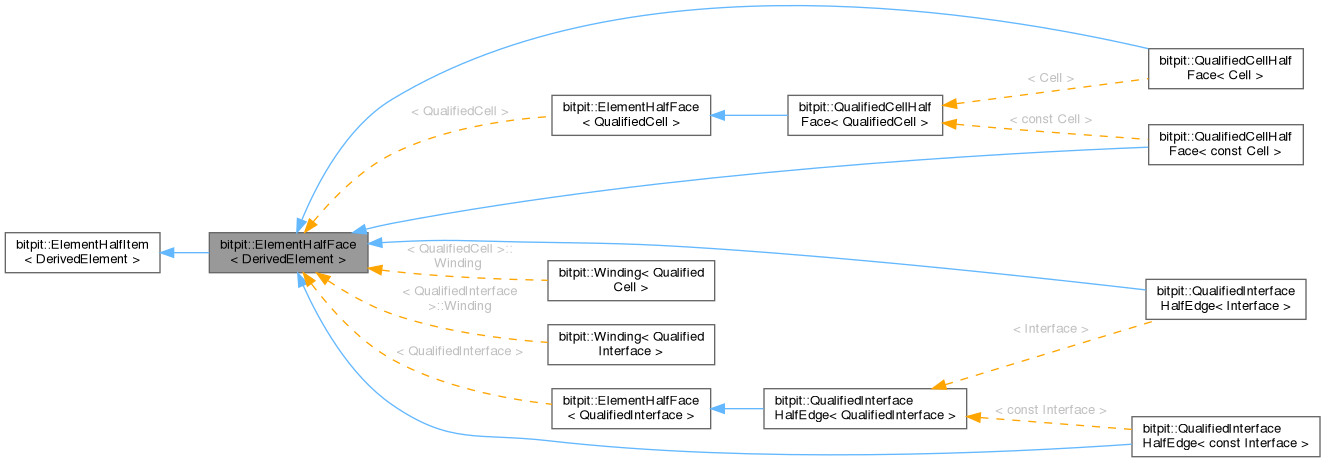

Inheritance diagram for bitpit::ElementHalfFace< DerivedElement >:

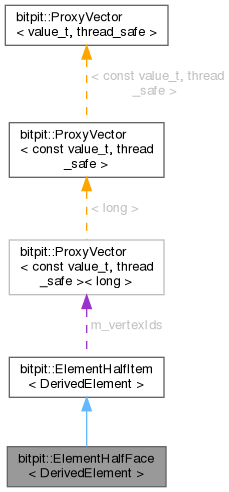

Collaboration diagram for bitpit::ElementHalfFace< DerivedElement >:

Public Types
typedef ElementHalfItem< DerivedElement >::Winding	Winding
Public Types inherited from bitpit::ElementHalfItem< DerivedElement >
enum	Winding { WINDING_NATURAL = 1 , WINDING_REVERSE = -1 }

Public Member Functions
int	getFace () const
Public Member Functions inherited from bitpit::ElementHalfItem< DerivedElement >
const ConstProxyVector< long > &	getVertexIds () const
Winding	getWinding () const
bool	operator!= (const ElementHalfItem &other) const
bool	operator== (const ElementHalfItem &other) const
void	setWinding (Winding winding)

Protected Member Functions
	ElementHalfFace (DerivedElement &element, int face, Winding winding)
Protected Member Functions inherited from bitpit::ElementHalfItem< DerivedElement >
	ElementHalfItem (DerivedElement &element, ConstProxyVector< long > &&vertexIds, ElementHalfItem< DerivedElement >::Winding winding)
DerivedElement &	getElement () const

Protected Attributes
int	m_face
Protected Attributes inherited from bitpit::ElementHalfItem< DerivedElement >
DerivedElement &	m_element
std::size_t	m_firstVertexId
ConstProxyVector< long >	m_vertexIds
Winding	m_winding

Detailed Description

template<class DerivedElement>
class bitpit::ElementHalfFace< DerivedElement >

The ElementHalfFace class defines element half-faces.

ElementHalfFace is the class that defines element half-faces. Each face can be seen as two half-faces: one belonging to an element and the other belonging to the neighbouring element. A half-face is identify by its vertexIds and by the winding order of the vertexIds.

Definition at line 272 of file element.hpp.

Member Typedef Documentation

Winding

template<class DerivedElement>

typedef ElementHalfItem<DerivedElement>::Winding bitpit::ElementHalfFace< DerivedElement >::Winding

Definition at line 275 of file element.hpp.

Constructor & Destructor Documentation

ElementHalfFace()

template<class DerivedElement>

bitpit::ElementHalfFace< DerivedElement >::ElementHalfFace ( DerivedElement & element, int face, Winding winding )

protected

Constructor.

Parameters

element	is a reference to the element the owns the face
face	if the local face of the element
winding	is the winding order of the vertexIds

Definition at line 257 of file element.tpp.

Member Function Documentation

getFace()

template<class DerivedElement>

int bitpit::ElementHalfFace< DerivedElement >::getFace

(

)

const

Get the local face index.

Returns

Returns the local face index.

Definition at line 269 of file element.tpp.

Member Data Documentation

m_face

template<class DerivedElement>

int bitpit::ElementHalfFace< DerivedElement >::m_face

protected

Definition at line 280 of file element.hpp.

---

The documentation for this class was generated from the following files:

• src/patchkernel/element.hpp
• src/patchkernel/element.tpp
