bitpit::ElementHalfEdge< DerivedElement > Class Template Reference

The ElementHalfEdge class defines element half-edge items. More...

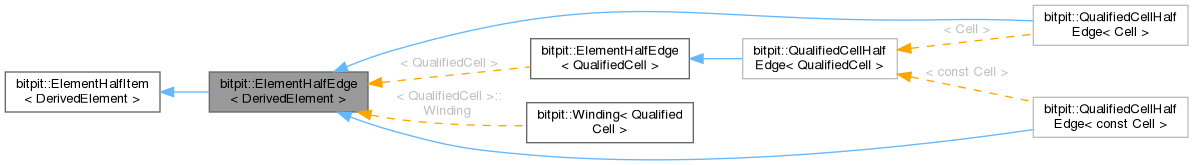

Inheritance diagram for bitpit::ElementHalfEdge< DerivedElement >:

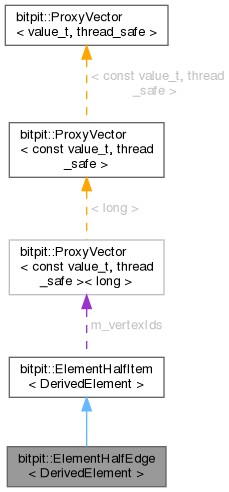

Collaboration diagram for bitpit::ElementHalfEdge< DerivedElement >:

Public Types
typedef ElementHalfItem< DerivedElement >::Winding	Winding
Public Types inherited from bitpit::ElementHalfItem< DerivedElement >
enum	Winding { WINDING_NATURAL = 1 , WINDING_REVERSE = -1 }

Public Member Functions
int	getEdge () const
Public Member Functions inherited from bitpit::ElementHalfItem< DerivedElement >
const ConstProxyVector< long > &	getVertexIds () const
Winding	getWinding () const
bool	operator!= (const ElementHalfItem &other) const
bool	operator== (const ElementHalfItem &other) const
void	setWinding (Winding winding)

Protected Member Functions
	ElementHalfEdge (DerivedElement &element, int edge, Winding winding)
Protected Member Functions inherited from bitpit::ElementHalfItem< DerivedElement >
	ElementHalfItem (DerivedElement &element, ConstProxyVector< long > &&vertexIds, ElementHalfItem< DerivedElement >::Winding winding)
DerivedElement &	getElement () const

Protected Attributes
int	m_edge
Protected Attributes inherited from bitpit::ElementHalfItem< DerivedElement >
DerivedElement &	m_element
std::size_t	m_firstVertexId
ConstProxyVector< long >	m_vertexIds
Winding	m_winding

Detailed Description

template<class DerivedElement>
class bitpit::ElementHalfEdge< DerivedElement >

The ElementHalfEdge class defines element half-edge items.

ElementHalfEdge is the class that defines element half-edge items.

Definition at line 257 of file element.hpp.

Member Typedef Documentation

Winding

template<class DerivedElement>

typedef ElementHalfItem<DerivedElement>::Winding bitpit::ElementHalfEdge< DerivedElement >::Winding

Definition at line 260 of file element.hpp.

Constructor & Destructor Documentation

ElementHalfEdge()

template<class DerivedElement>

bitpit::ElementHalfEdge< DerivedElement >::ElementHalfEdge ( DerivedElement & element, int edge, Winding winding )

protected

Constructor.

Parameters

element	is a reference to the element the owns the edge
edge	if the local index of the edge
winding	is the winding order of the vertexIds

Definition at line 220 of file element.tpp.

Member Function Documentation

getEdge()

template<class DerivedElement>

int bitpit::ElementHalfEdge< DerivedElement >::getEdge

(

)

const

Get the local edge index.

Returns

Returns the local edge index.

Definition at line 232 of file element.tpp.

Member Data Documentation

m_edge

template<class DerivedElement>

int bitpit::ElementHalfEdge< DerivedElement >::m_edge

protected

Definition at line 265 of file element.hpp.

---

The documentation for this class was generated from the following files:

• src/patchkernel/element.hpp
• src/patchkernel/element.tpp
